Home >> Infiniti >> 2004 >> M45 >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control System >> G Sensor >> Removal And Installation >> Removal

Removal And Installation: Removal

  1. Remove center console. Refer to INSTRUMENT PANEL ASSEMBLY .
  2. Disconnect harness connector.
  3. Remove installation bolts. Remove yaw rate/side G-sensor.

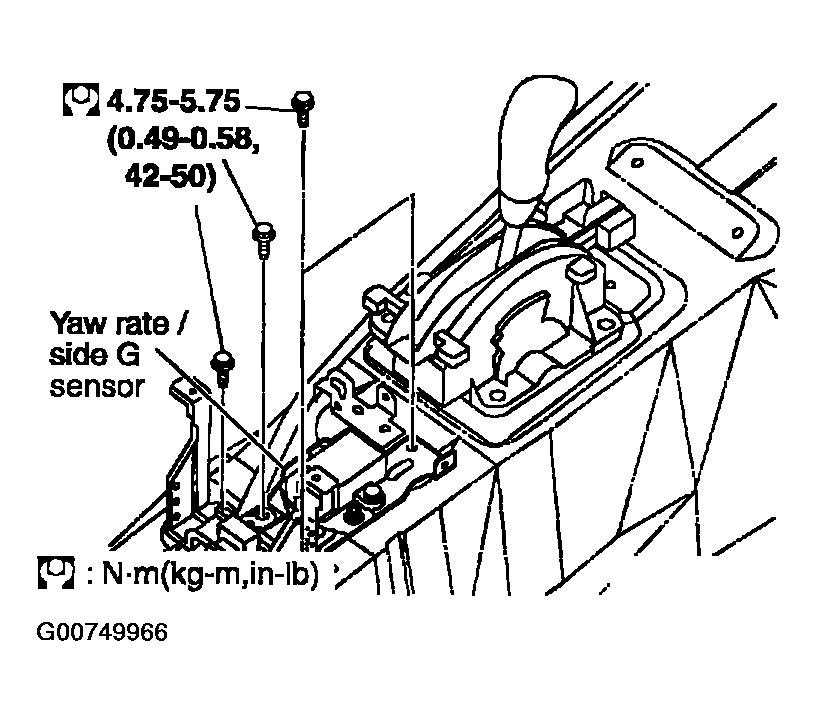

    Fig 1: Removing & Installing G-Sensor
    G00749966Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Do not drop or strike the yaw rate/side G-sensor, because it has little endurance to impact.
