Home >> Infiniti >> 2004 >> M45 >> Repair and Diagnosis >> Engine Performance >> Engine Control System >> DTC P0112, P0113: IAT Sensor >> Wiring Diagram

DTC P0112, P0113: IAT Sensor: Wiring Diagram

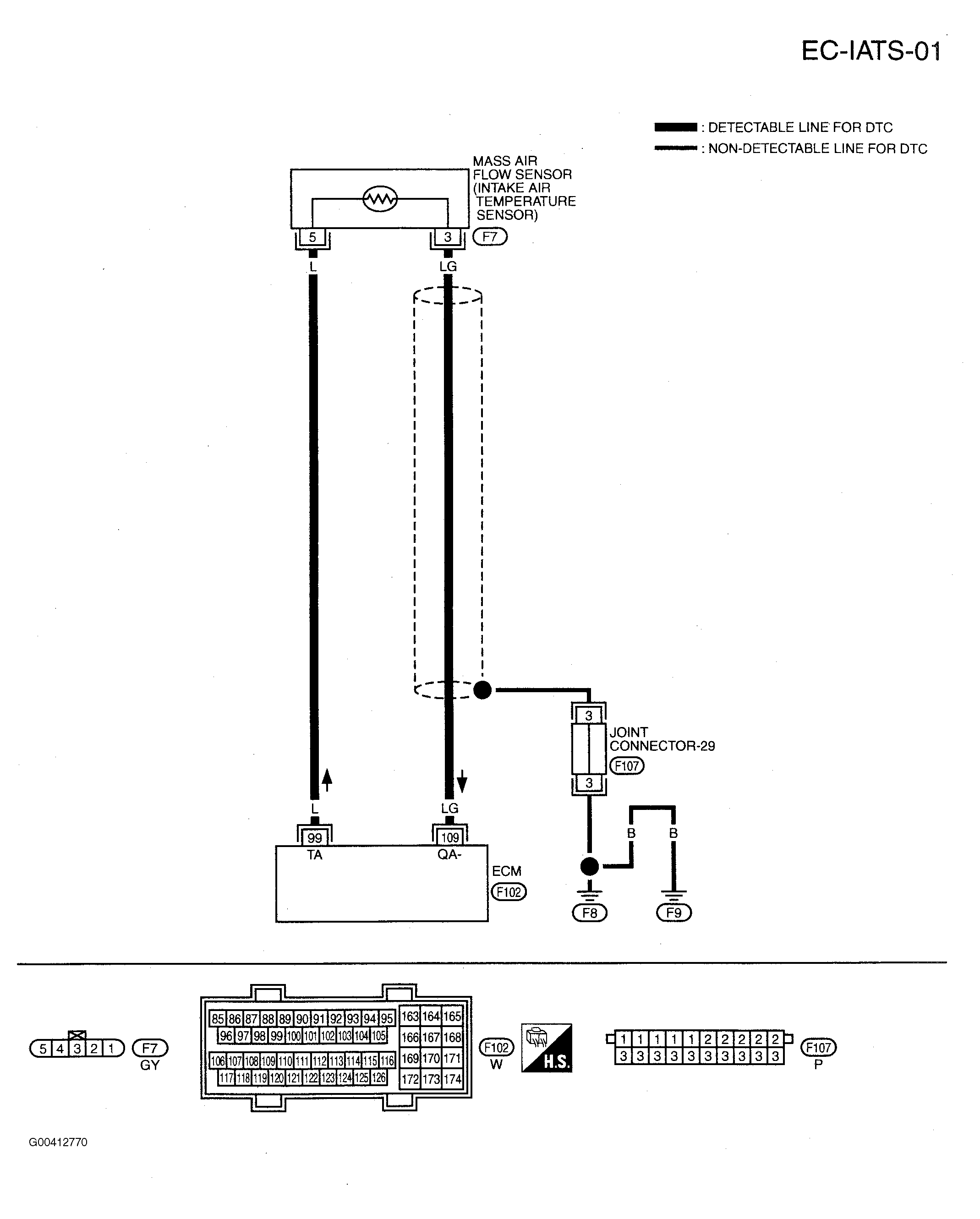

Fig 1: Circuit Diagram - IAT Sensor - EC-IATS-01

G00412770

Courtesy of NISSAN MOTOR CO., U.S.A.
