DTC P0117, P0118: ECT Sensor: Wiring Diagram

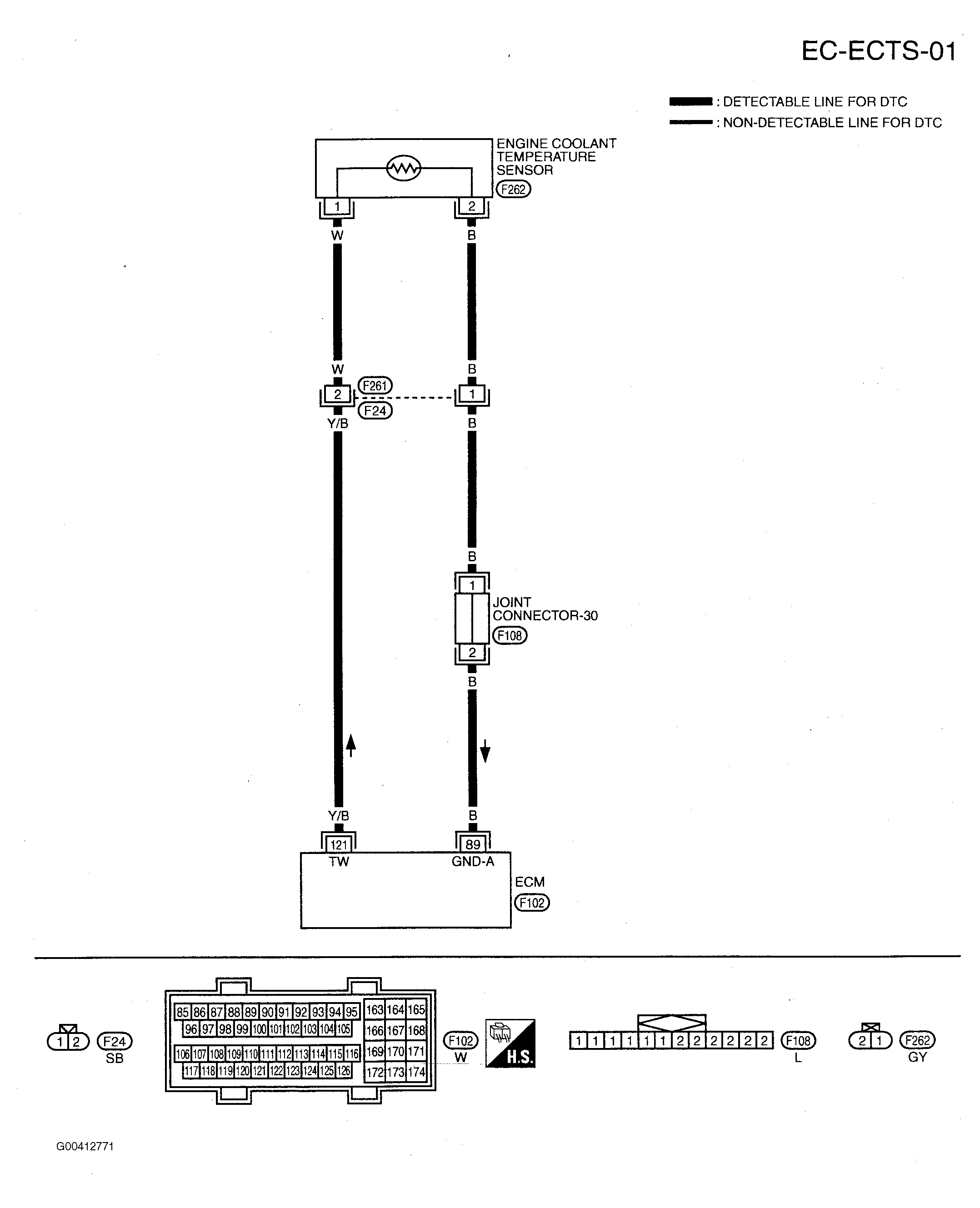

Fig 1: Circuit Diagram - ECT Sensor - EC-ECTS-01

G00412771

Courtesy of NISSAN MOTOR CO., U.S.A.
