DTC P0171, P0174: Fuel Injection System Function
>>
Wiring Diagram
>>
Bank 1
Bank 1

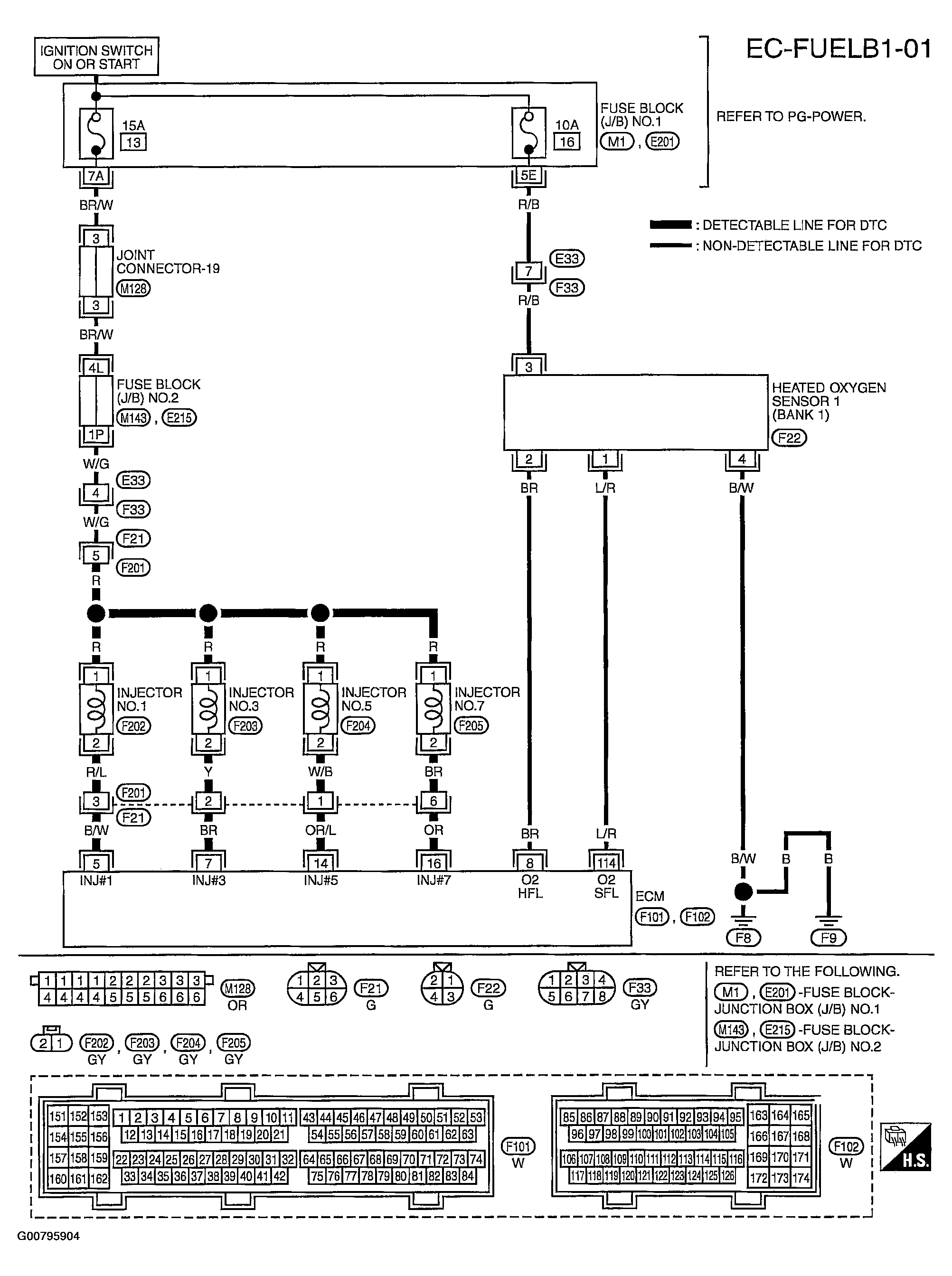

Fig 1: Circuit Diagram - Fuel Injection - Bank 1 - EC-FUELB1-01
Courtesy of NISSAN MOTOR CO., U.S.A.
