Home >> Infiniti >> 2004 >> M45 >> Repair and Diagnosis >> Engine Performance >> Engine Control System >> DTC P0420, P0430: Three Way Catalyst Function >> Diagnostic Procedure >> 4. Check Ignition Timing

4. Check Ignition Timing

Check the following items. Refer to BASIC INSPECTION.

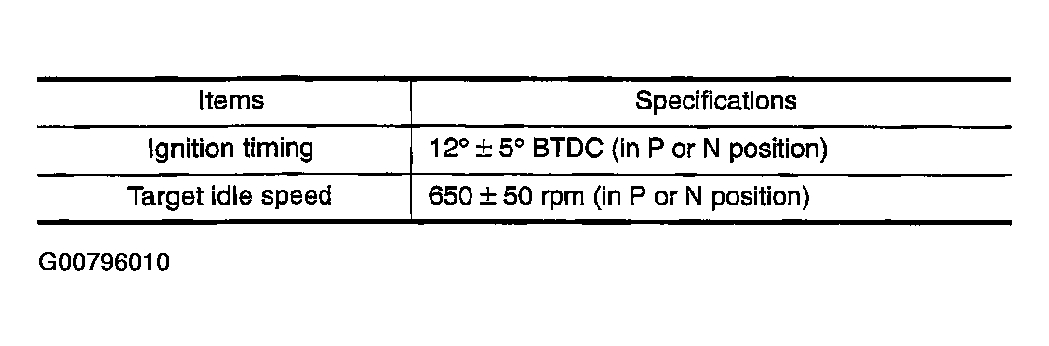

Fig 1: Ignition Timing & Idle Speed Specifications Chart
G00796010Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK: GO TO 5.
  2. NG: Follow the BASIC INSPECTION.
