Home >> Infiniti >> 2004 >> M45 >> Repair and Diagnosis >> Engine Performance >> Engine Control System >> DTC P1102: MAF Sensor >> Diagnostic Procedure >> 1. Check Ground Connections

1. Check Ground Connections

  1. Turn ignition switch OFF.
  2. Loosen and retighten two ground screws.
  3. Refer to GROUND INSPECTION .

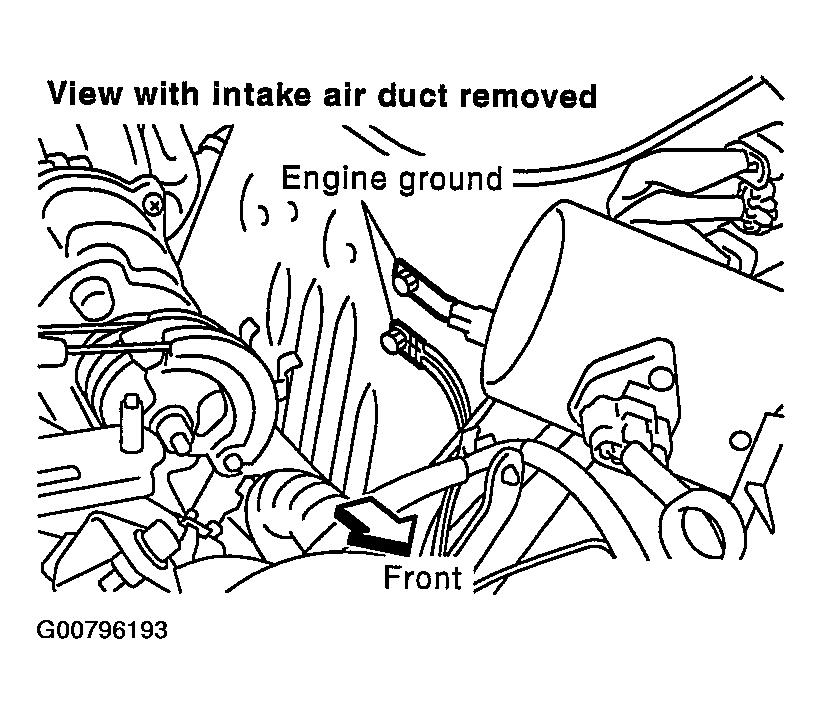

    Fig 1: Identifying Engine Ground Wires
    G00796193Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

  1. OK: GO TO 2.
  2. NG: Repair or replace ground connections.
