Home >> Infiniti >> 2004 >> M45 >> Repair and Diagnosis >> Engine Performance >> Engine Control System >> DTC P1225: TP Sensor >> DTC Confirmation Procedure >> With CONSULT-II

With CONSULT-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.

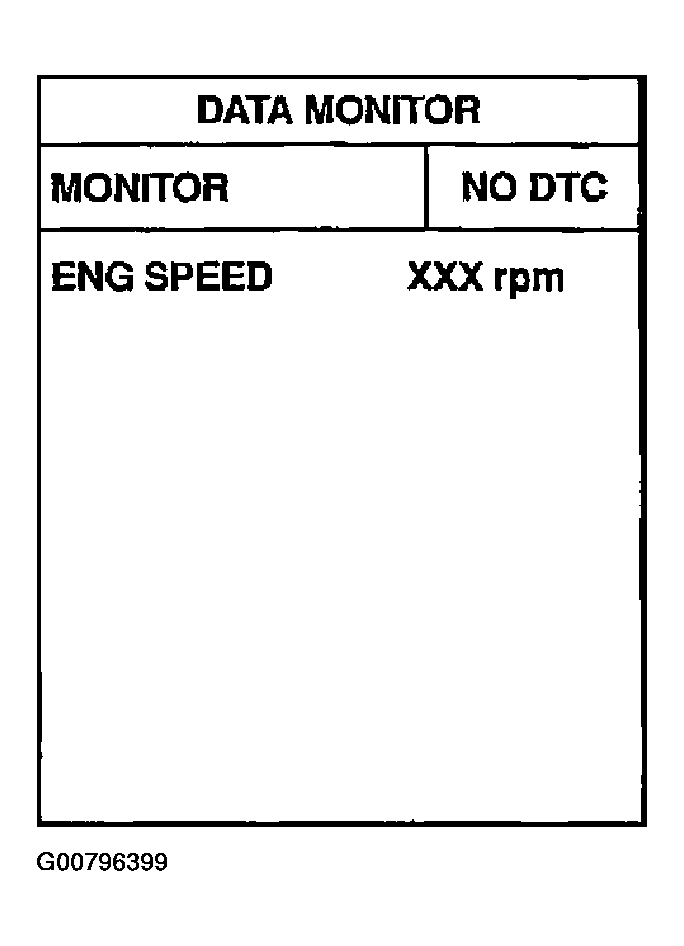

    Fig 1: Scan Tool Display - Data Monitor
    G00796399Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch OFF and wait at least 10 seconds.
  4. Turn ignition switch ON.
  5. If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .
