Home >> Infiniti >> 2004 >> M45 >> Repair and Diagnosis >> Engine Performance >> Engine Control System >> DTC P1706: PNP Switch >> Overall Function Check >> With GST

With GST

  1. Turn ignition switch ON.
  2. Check voltage between ECM terminal 80 (PNP switch signal) and ground under the following conditions.

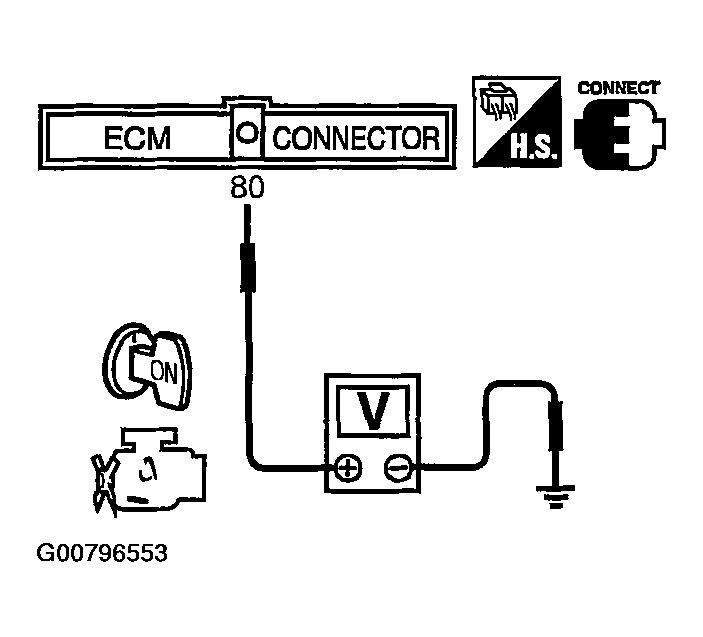

    Fig 1: Checking Voltage Between ECM Terminal 80 & Ground
    G00796553Courtesy of NISSAN MOTOR CO., U.S.A.

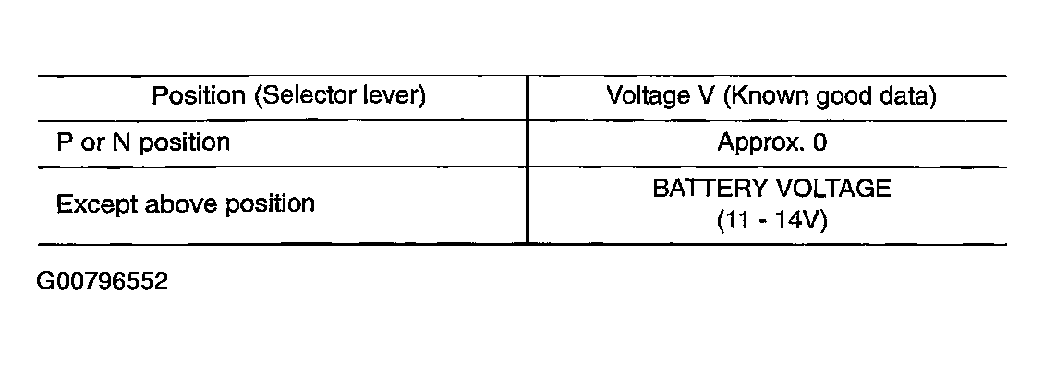

    Fig 2: Inspecting Conditions Chart
    G00796552Courtesy of NISSAN MOTOR CO., U.S.A.
  3. If NG, go to DIAGNOSTIC PROCEDURE .
