ECM Relay

  1. Apply 12V direct current between ECM relay terminals 1 and 2.
  2. Check continuity between relay terminals 3 and 5, 6 and 7.

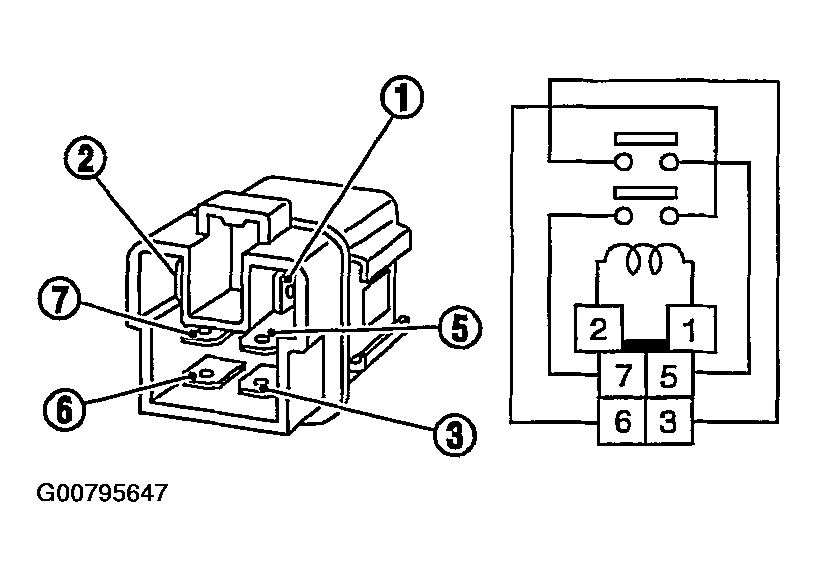

    Fig 1: Checking ECM Relay Terminal Voltage
    G00795647Courtesy of NISSAN MOTOR CO., U.S.A.
  3. If NG, replace ECM relay.
