Trouble Diagnosis - Specification Value
>>
Diagnostic Procedure
Diagnostic Procedure

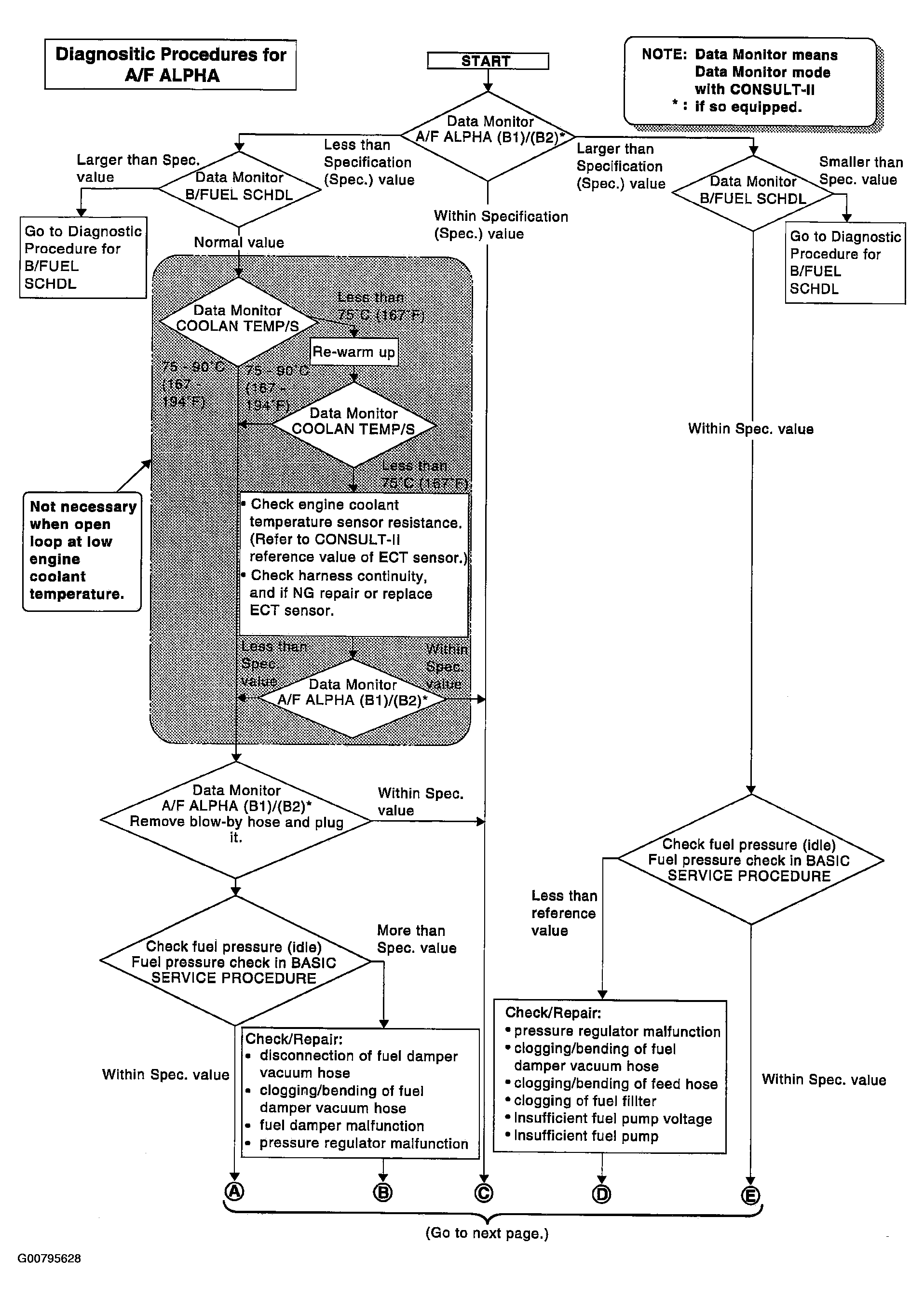

Fig 1: Identifying Diagnostic Procedure Information (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

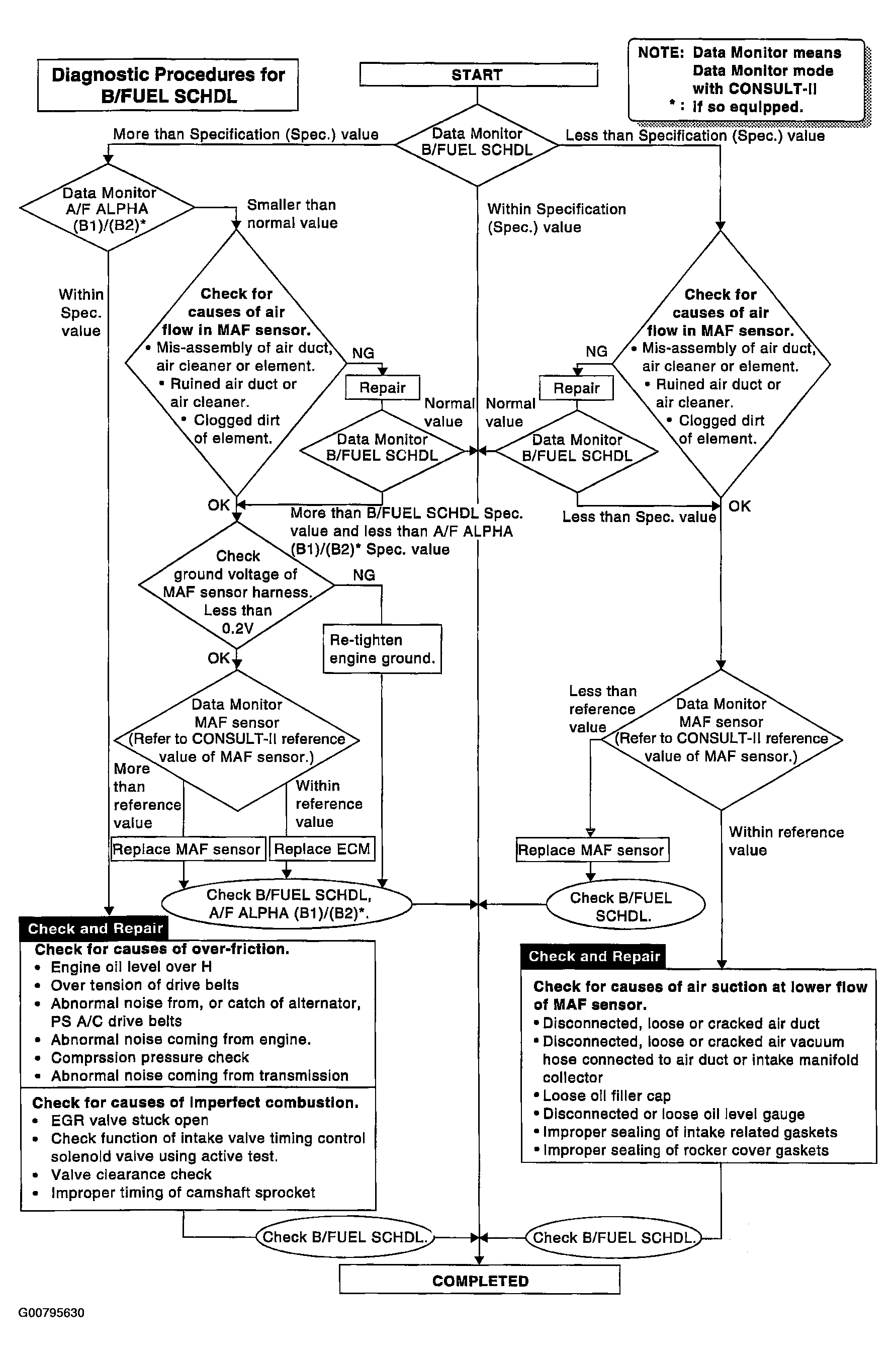

Fig 2: Identifying Diagnostic Procedure Information (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

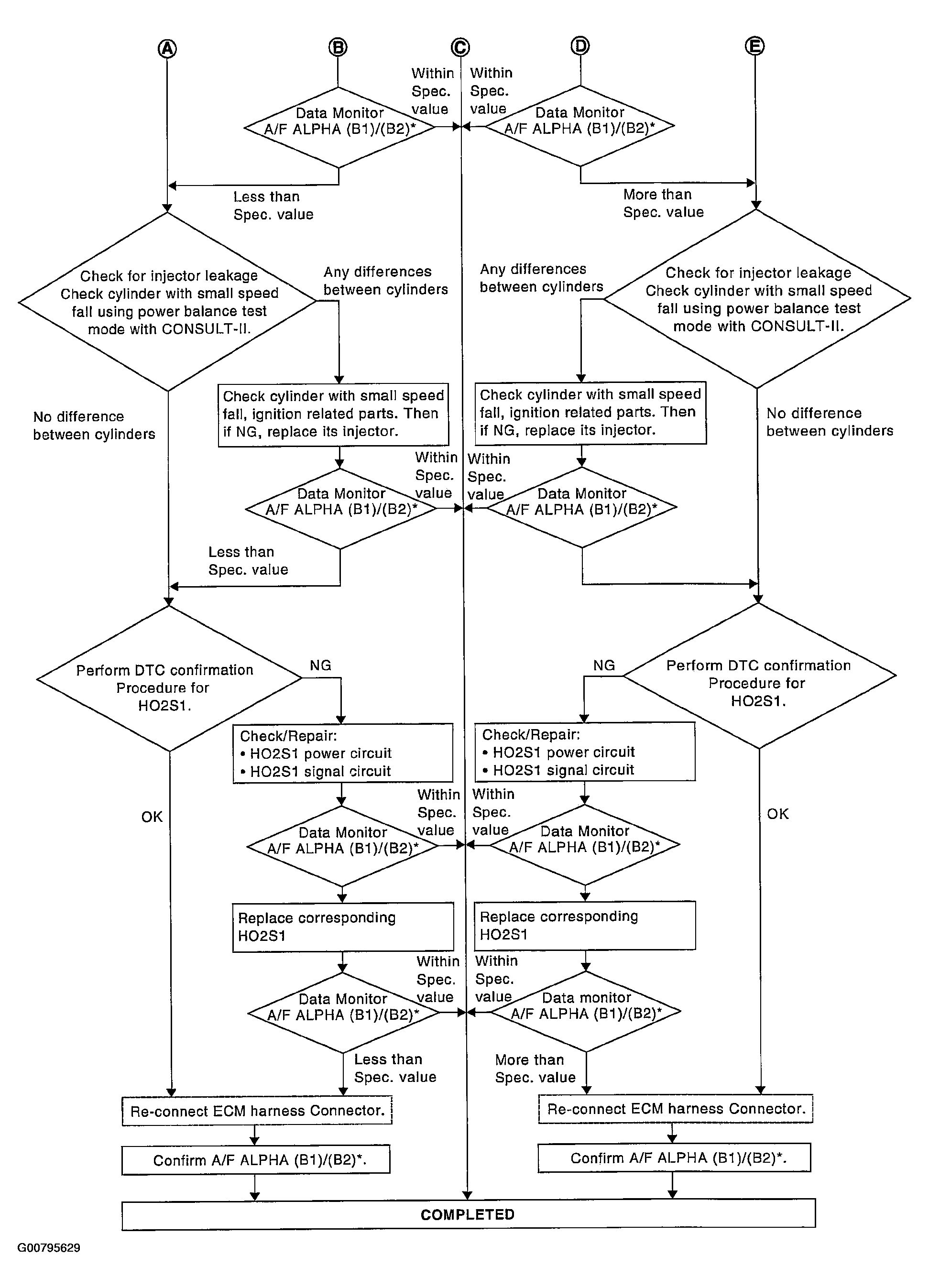

Fig 3: Identifying Diagnostic Procedure Information (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
