Vacuum Tank

  1. Disconnect vacuum hose connected to vacuum tank.
  2. Connect a vacuum pump to the port A of vacuum tank.
  3. Apply vacuum and make sure that vacuum exists at the port B.

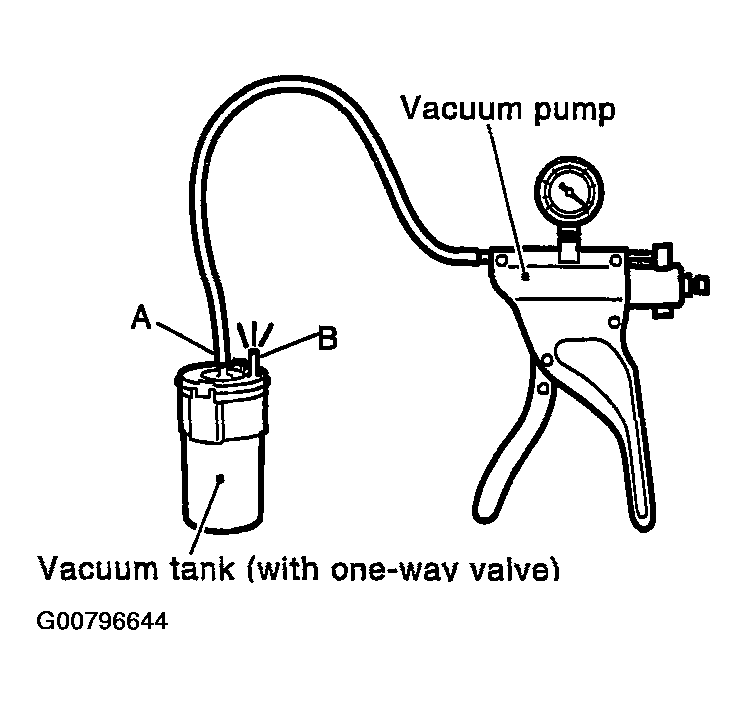

Fig 1: Inspecting Vacuum Tank
G00796644Courtesy of NISSAN MOTOR CO., U.S.A.
