Key Switch
Check continuity between terminals of the key switch and key lock solenoid harness connector terminals.

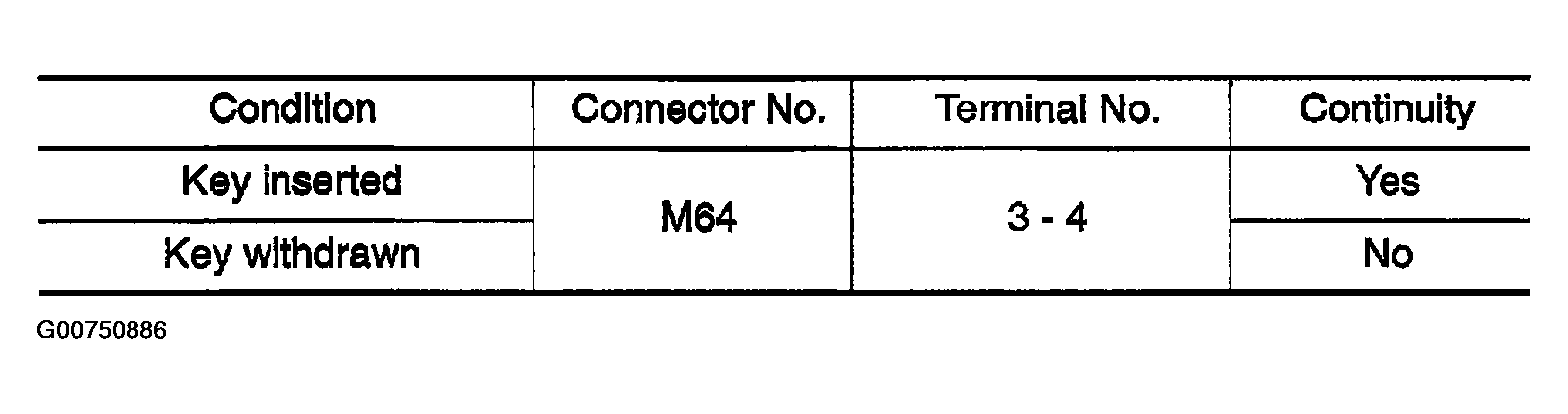

Fig 1: Key Switch Specifications Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

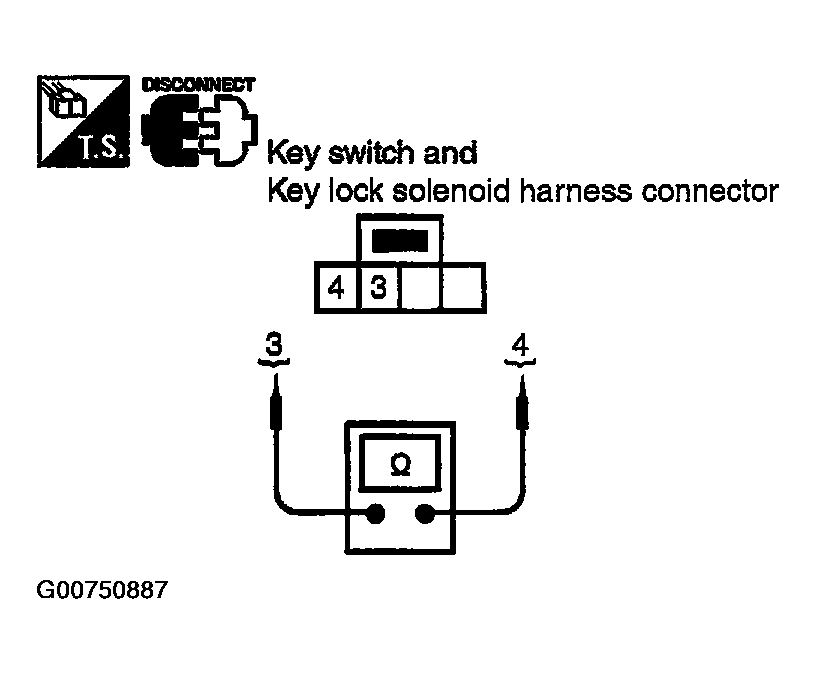

Fig 2: Key Switch Testing Procedures
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
