Stop Lamp Switch

Check continuity between terminals of the stop lamp switch harness connector.

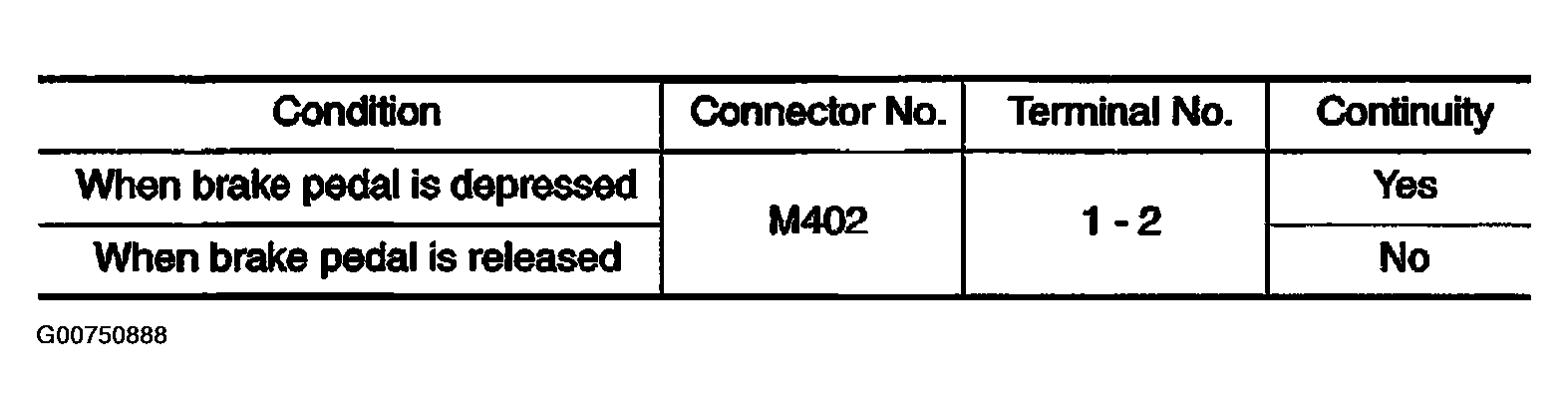

Fig 1: Stop Lamp Switch Specifications Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

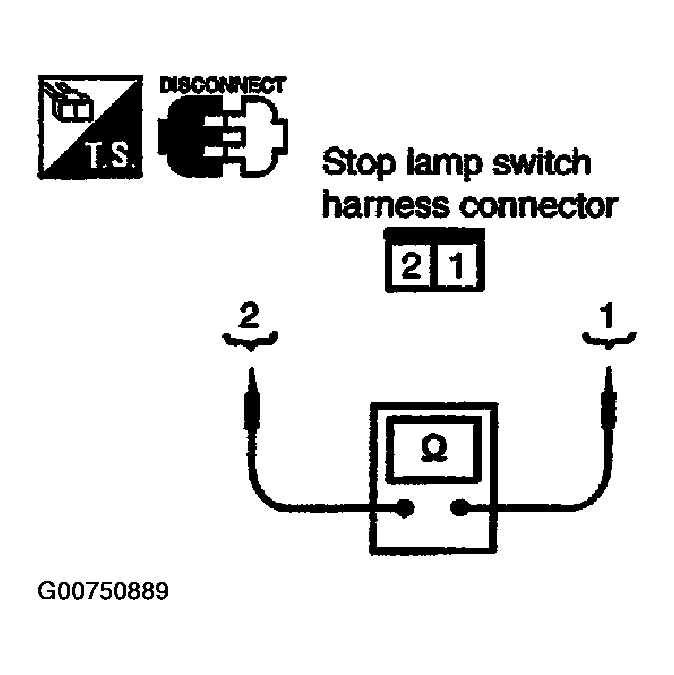

Fig 2: Stop Lamp Switch Testing Procedures
Courtesy of NISSAN MOTOR CO., U.S.A.

Check stop lamp switch after adjusting brake pedal. Refer to " INSPECTION AND ADJUSTMENT " .
