Parking Components: Installation

CAUTION: After completing installation, check A/T fluid leakage and A/T fluid level. Refer to " A/T FLUID  -Changing A/T Fluid"  .
  1. Install return spring in parking pawl.

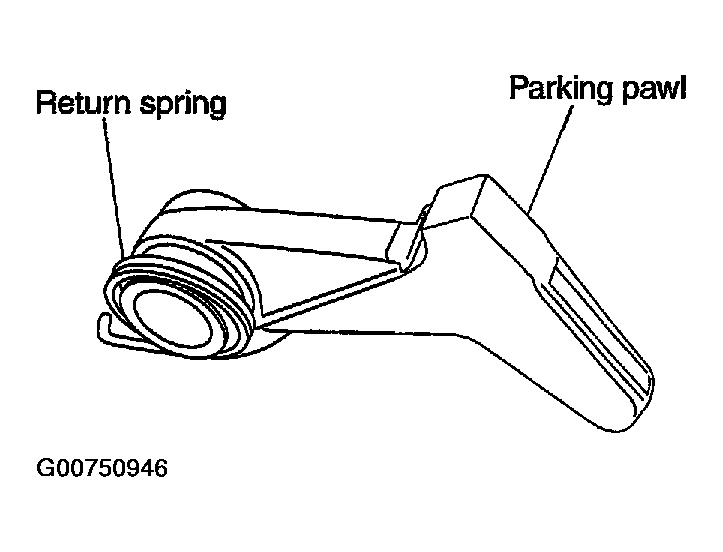

    Fig 1: Identifying Parking Pawl & Return Spring
    G00750946Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install parking pawl and pawl shaft in output shaft & companion flange complement.

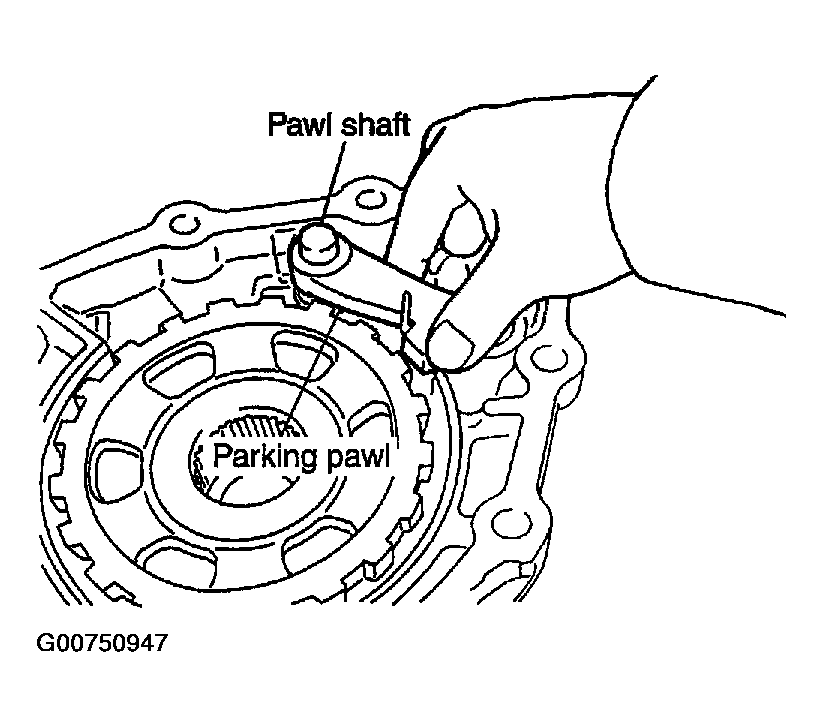

    Fig 2: Locating Parking Pawl & Parking Pawl Shaft
    G00750947Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install parking actuator support in output shaft & companion flange complement.

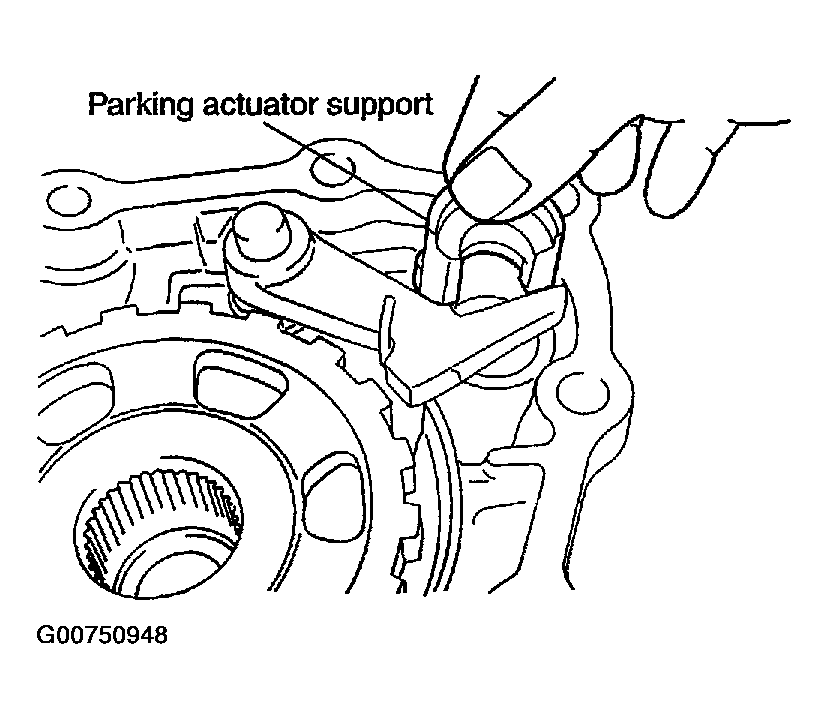

    Fig 3: Removing & Installing Parking Actuator Support
    G00750948Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to "Recommended Chemical Products and Sealants"  .) to output shaft & companion flange complement as shown in illustration.
    CAUTION: Complete remove all moisture, oil and old sealant, etc. From the transmission case and output shaft & companion flange complement mounting surfaces.

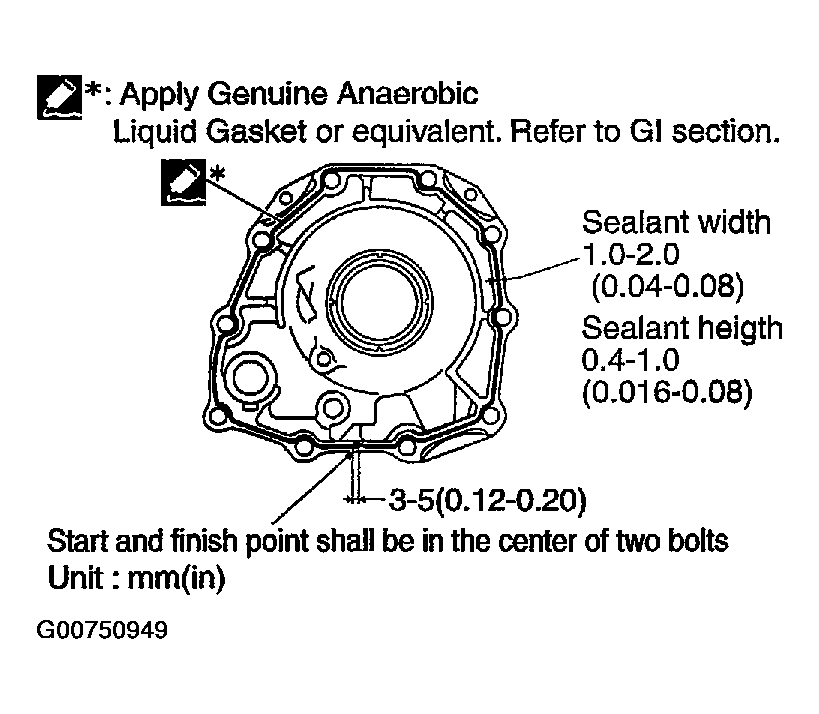

    Fig 4: Identifying Anaerobic Liquid Gasket Application Specifications
    G00750949Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install output shaft & companion flange complement in transmission assembly.

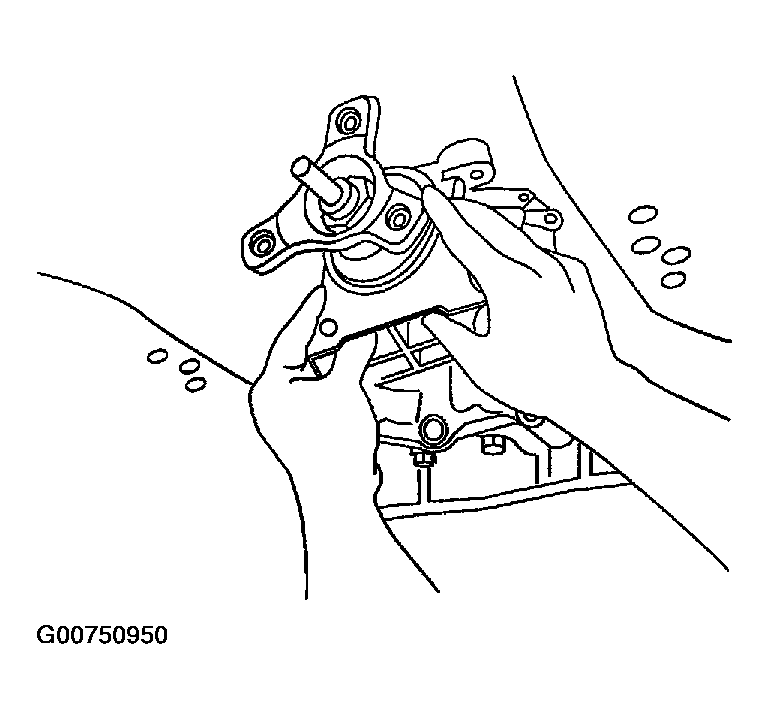

    Fig 5: Removing & Installing Output Shaft & Companion Flange
    G00750950Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Tighten output shaft & companion flange complement mounting bolts to specified torque. (Because terminal bracket is tightened together with output shaft & companion flange, it should be installed before procedure 5.)
    CAUTION: Do not reuse self-sealing bolt.
    1. Output shaft & companion flange complement mounting bolt:52 N.m (5.3 kg-m, 38 ft-lb)
    2. Self-sealing bolt:61 N.m (6.2 kg-m, 45 ft-lb)

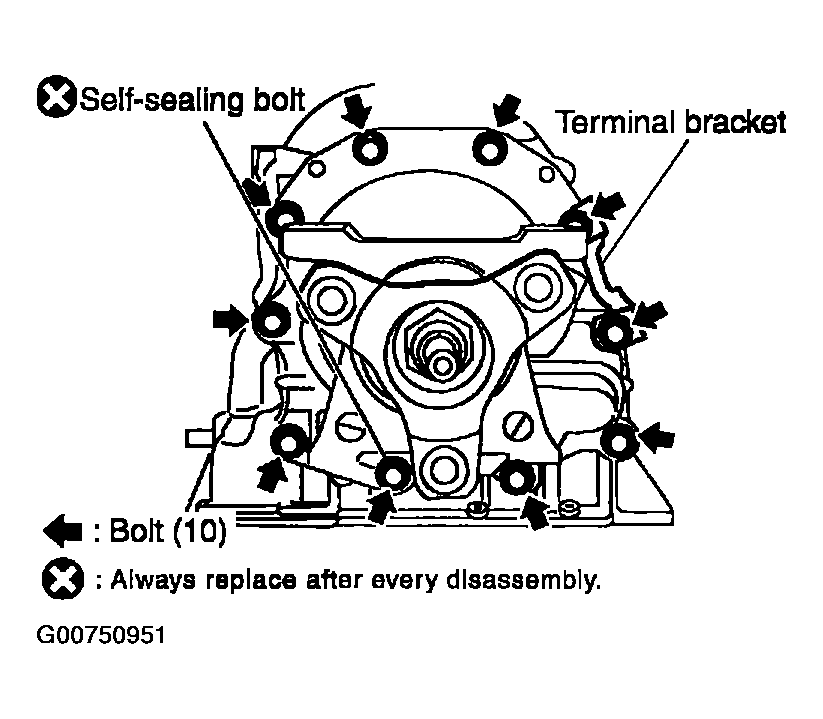

    Fig 6: Locating Output Shaft, Companion Flange & Transmission Case Mounting Bolts (With Note)
    G00750951Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install engine rear member. Refer to "Removal and Installation"  . See REMOVAL AND INSTALLATION .

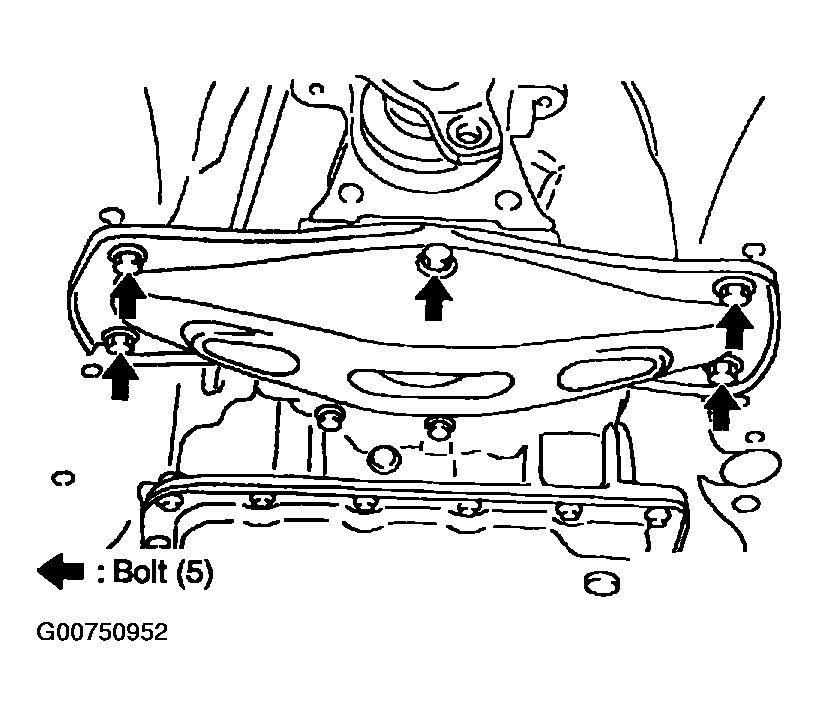

    Fig 7: Locating Engine Rear Member Mounting Bolts
    G00750952Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install propeller shaft. Refer to " REMOVAL AND INSTALLATION  ".
  9. Install exhaust front tube and center muffler with power tool. Refer to " REMOVAL AND INSTALLATION  ".
  10. Install drain plug in oil pan.
    CAUTION: Do not reuse drain plug gasket.
    1. : 34 N.m (3.5 kg-m, 25 ft-lb)
  11. Pour ATF into transmission assembly. Refer to " A/T FLUID  -Changing A/T Fluid".
    • After completing installation, check fluid leakage and fluid level of transmission assembly. Refer to " A/T FLUID  -Checking A/T Fluid".
