Control Device Removal And Installation: Notes

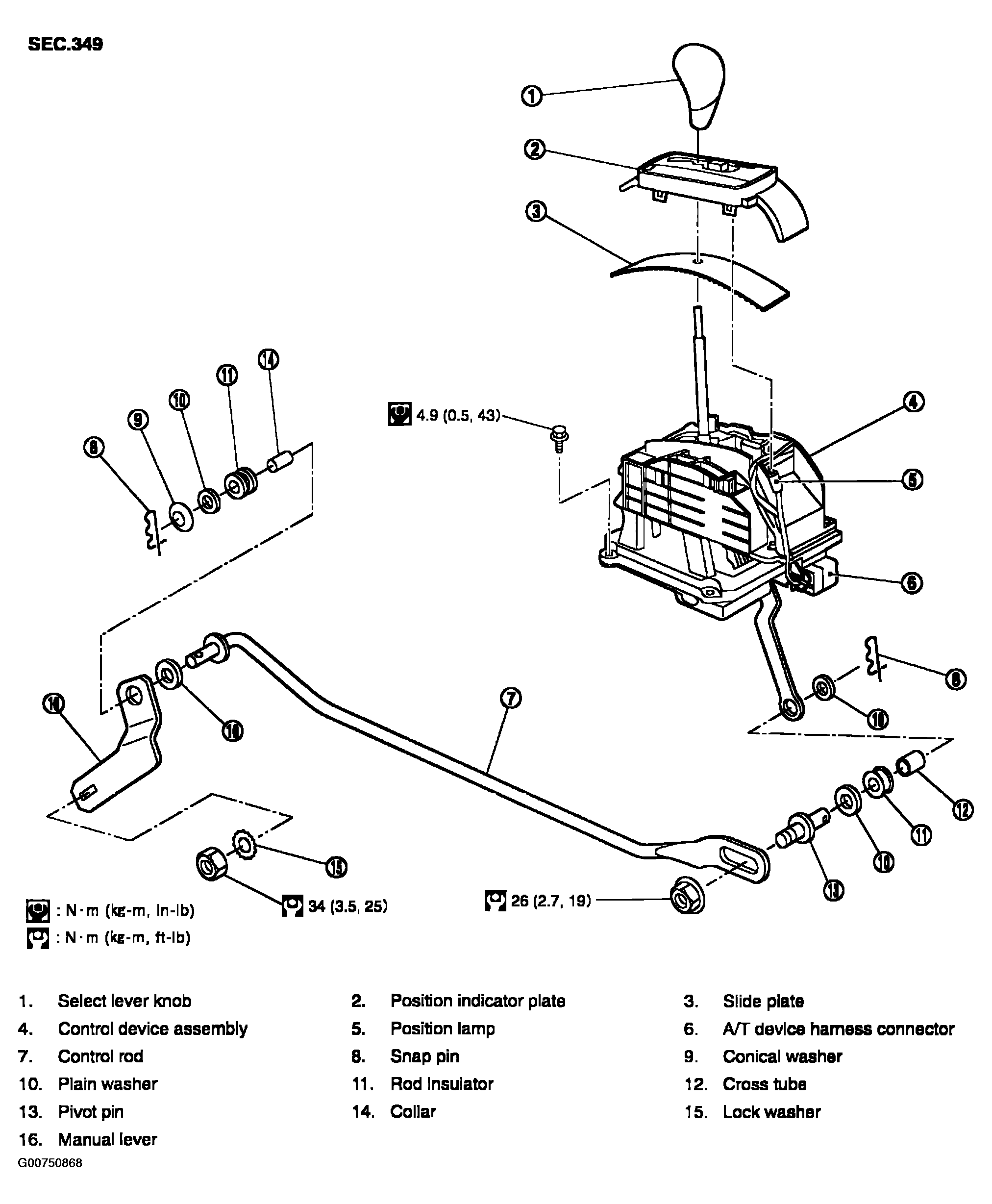

Fig 1: Locating Shift Control System Components

G00750868

Courtesy of NISSAN MOTOR CO., U.S.A.
