ASCD Output

Touch "ON" and "OFF" on the screen. Check that ASCD output is as shown in Fig 1.

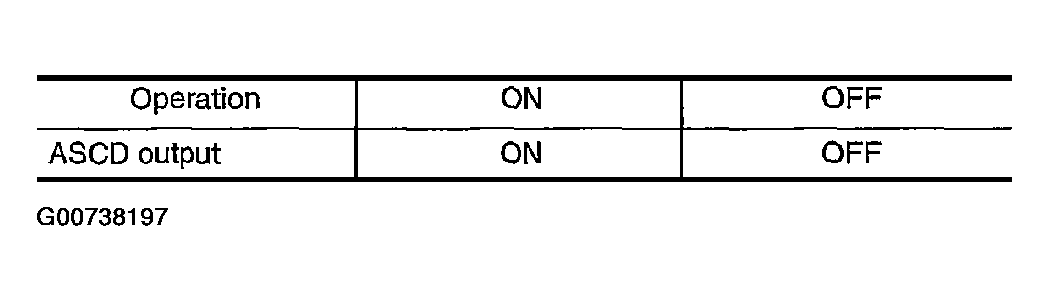

Fig 1: Displaying ASCD Output Operation

Courtesy of NISSAN MOTOR CO., U.S.A.

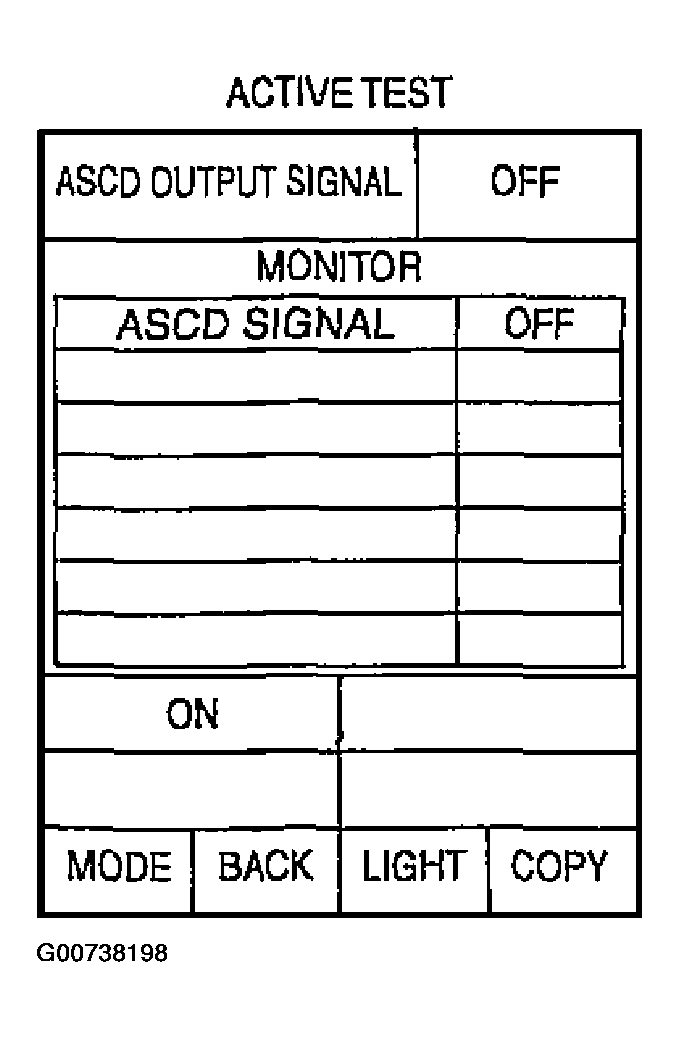

Fig 2: Displaying ASCD SIGNAL Screen

Courtesy of NISSAN MOTOR CO., U.S.A.
