Home >> Infiniti >> 2004 >> Q45 >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control System >> VDC/TCS/Abs Control Unit >> Removal And Installation >> Removal

Removal And Installation: Removal

  1. Remove instrument lower panel, glove box and instrument assist panel. Refer to INSTRUMENT PANEL ASSEMBLY .
  2. Remove VDC/TCS/ABS control unit.

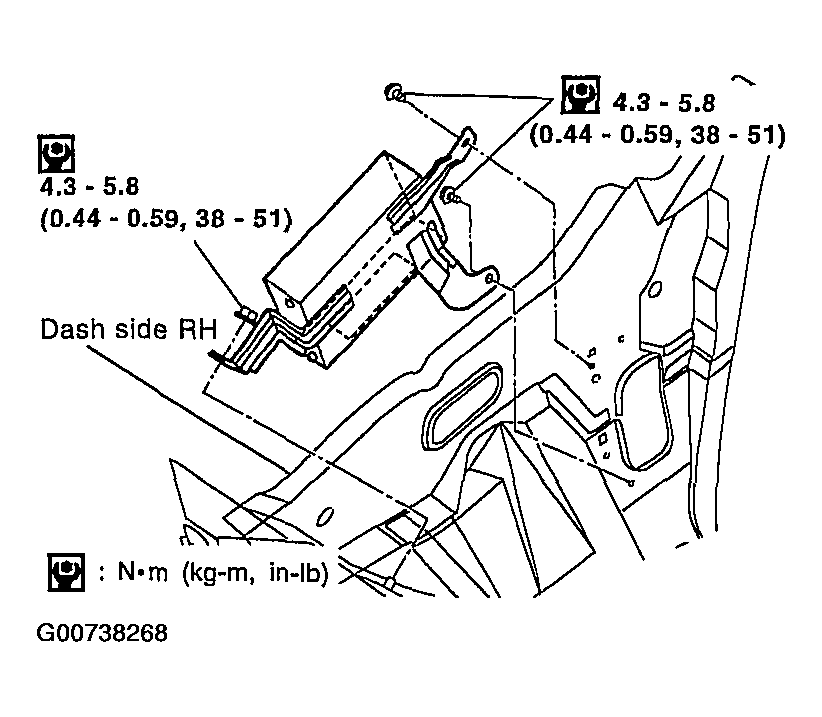

    Fig 1: Displaying Removal Of VDC/TCS/ABS Control Unit
    G00738268Courtesy of NISSAN MOTOR CO., U.S.A.
