Home >> Infiniti >> 2004 >> Q45 >> Repair and Diagnosis >> Electrical >> Gauges >> Driver Information System >> Voice Activated Control System >> Removal And Installation For Voice Activated Control Module >> Removal

Removal And Installation For Voice Activated Control Module: Removal

  1. Remove trunk trim. Refer to TRUNK ROOM TRIM & TRUNK LID FINISHER .
  2. Remove voice activated control module.

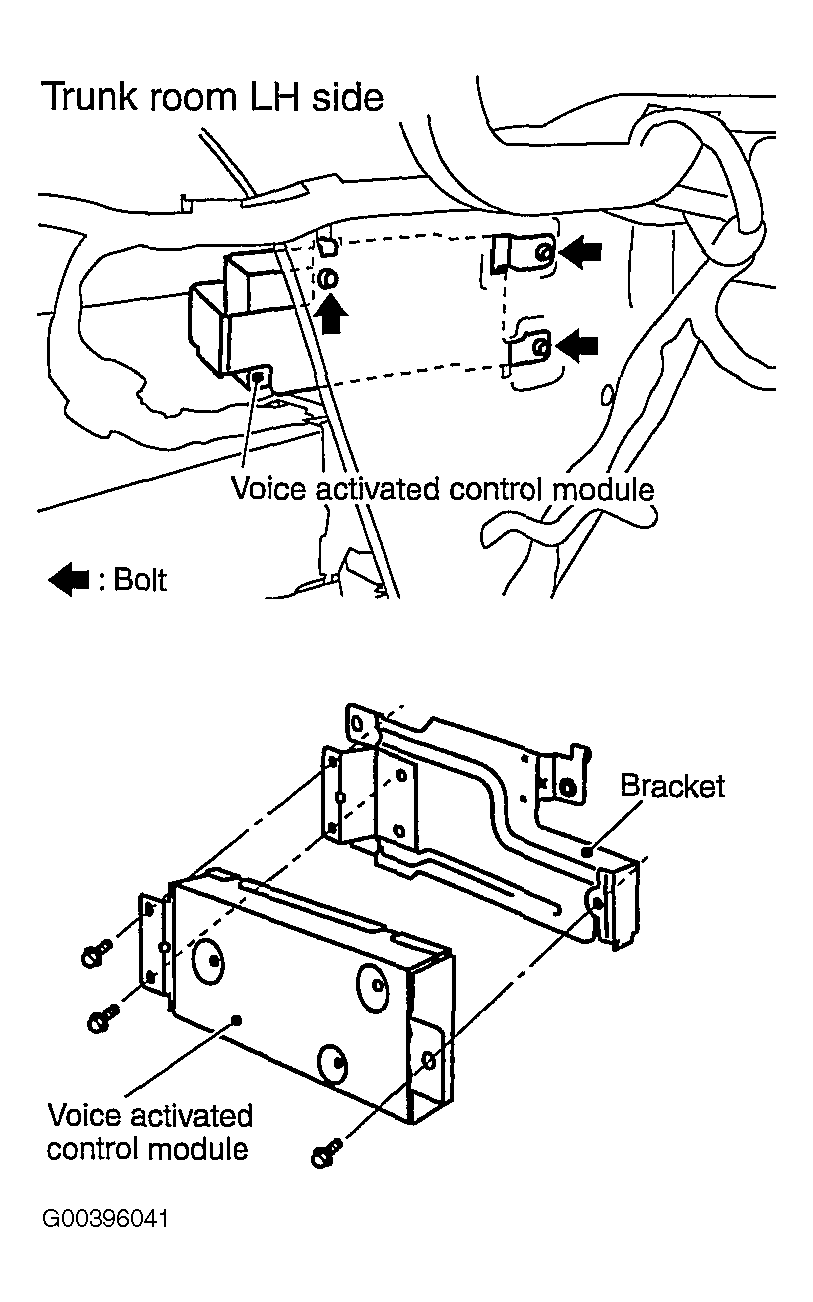

    3. Fig 1: Removing & Installing Voice Activated Control Module
    G00396041Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove bracket from voice activated control module.
