Home >> Infiniti >> 2004 >> Q45 >> Repair and Diagnosis >> Electrical >> Gauges >> Driver Information System >> Voice Activated Control System >> Schematic

Voice Activated Control System: Schematic

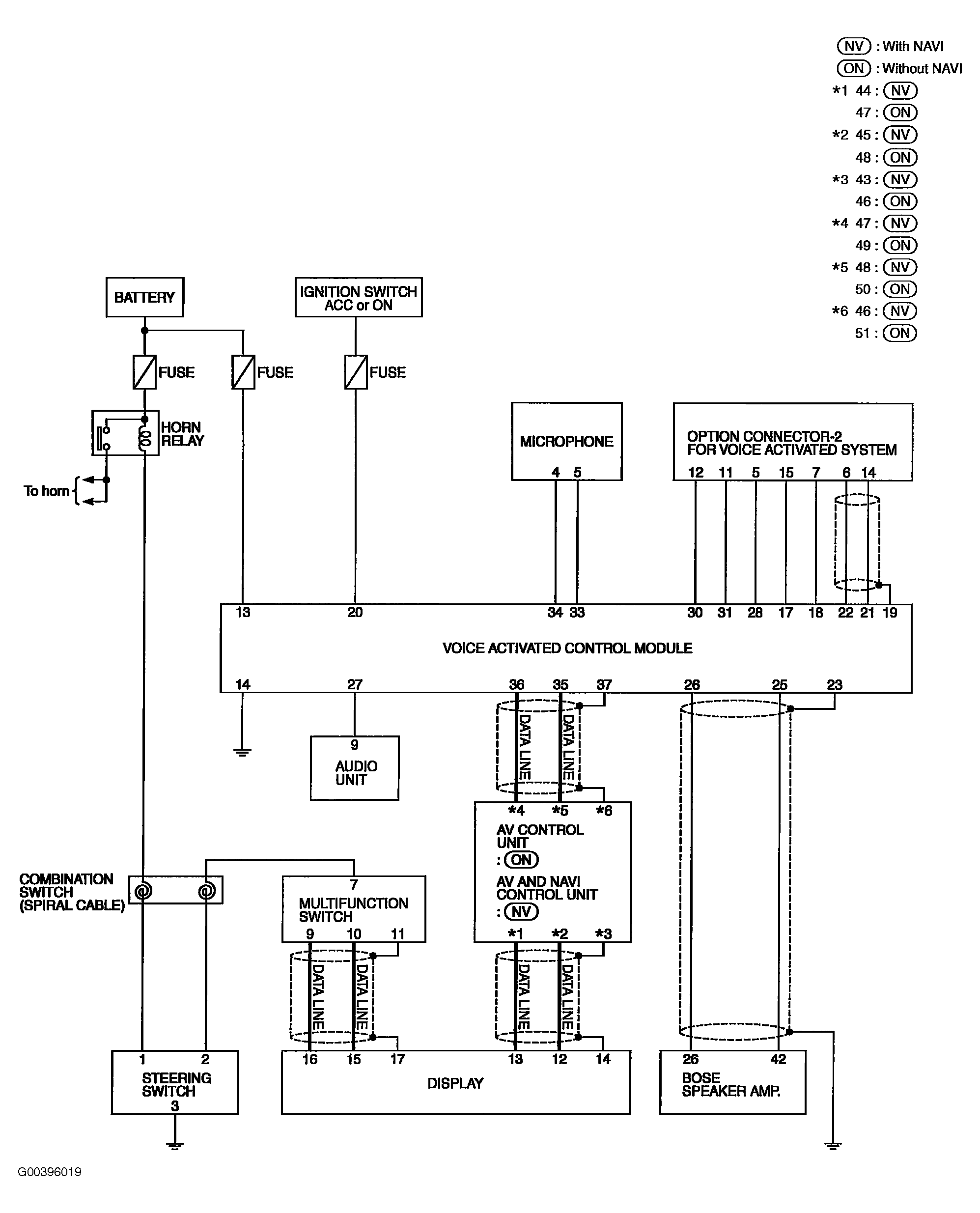

Fig 1: Schematic

G00396019

Courtesy of NISSAN MOTOR CO., U.S.A.
