Engine Coolant Temperature Sensor

  1. Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown in the figure.
    Fig 1: Checking resistance between engine coolant temperature sensor terminals 1 & 2
    G00760447Courtesy of NISSAN MOTOR CO., U.S.A.

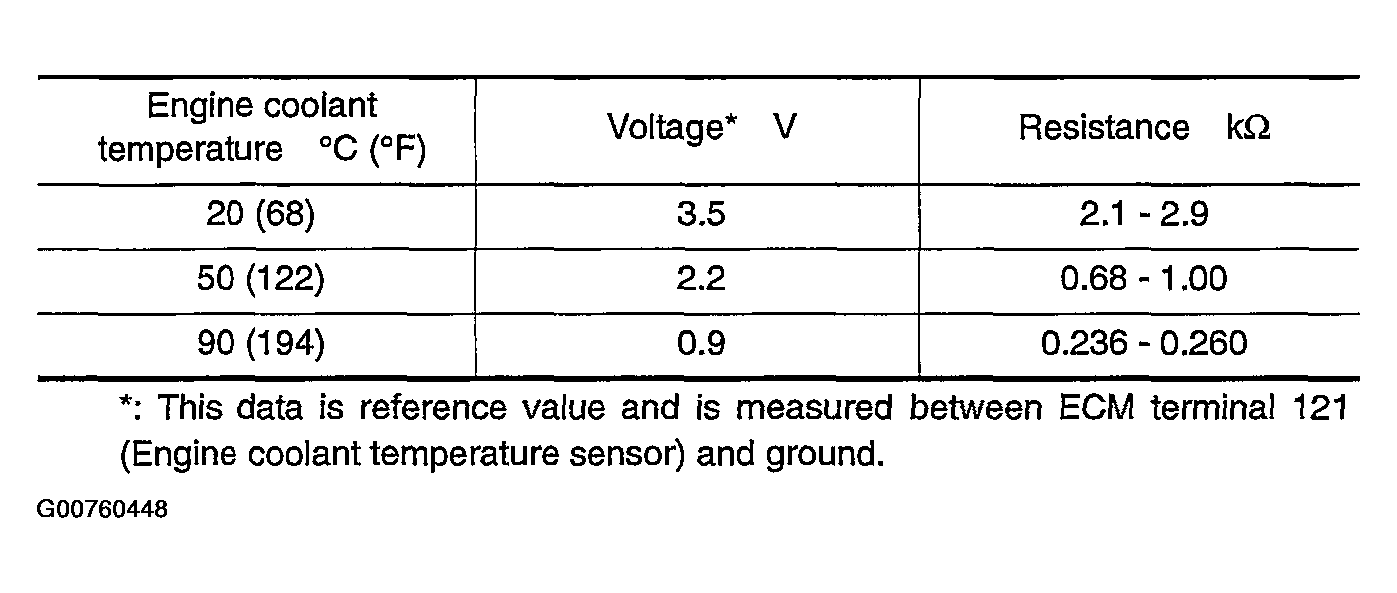

    < Reference data >

    Fig 2: Reference data
    G00760448Courtesy of NISSAN MOTOR CO., U.S.A.
  2. If NG, replace engine coolant temperature sensor.
