DTC P0171, P0174: Fuel Injection System Function
>>
Wiring Diagram
>>
Bank 2
Bank 2

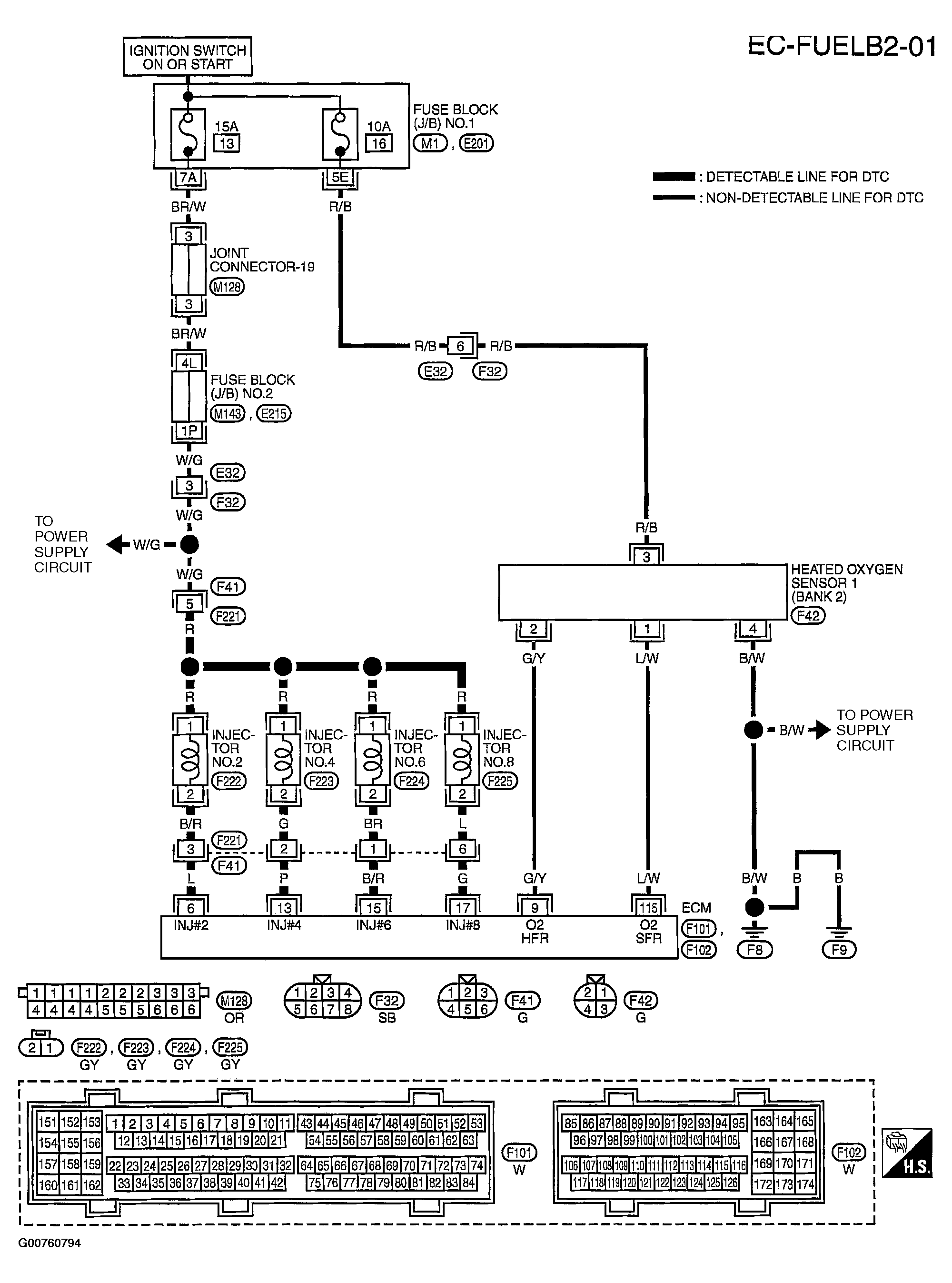

Fig 1: Bank 2 Circuit Diagram - EC-FUELB2-01
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
