Fuel Tank Temperature Sensor

  1. Remove fuel level sensor unit.
  2. Check resistance between "fuel level sensor unit and fuel pump" terminals 4 and 2 by heating with hot water or heat gun as shown in the figures.

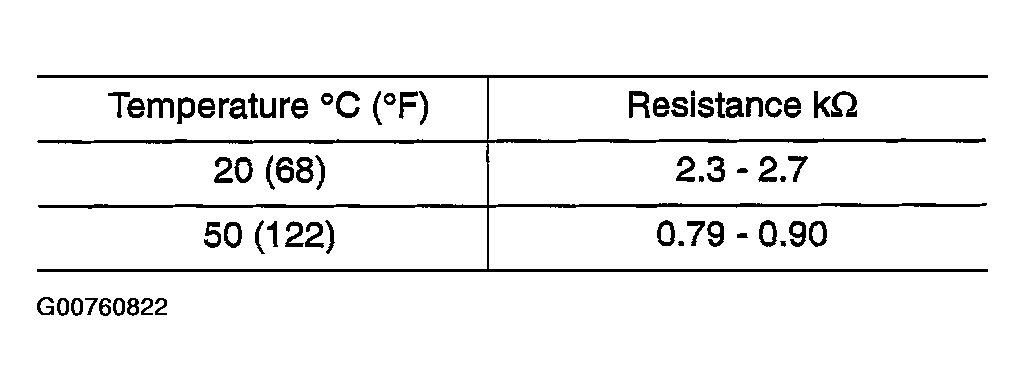

    Fig 1: Checking Resistance Between "Fuel Level Sensor Unit & Fuel Pump" Terminals 4 & 2 (1 Of 2)
    G00760822Courtesy of NISSAN MOTOR CO., U.S.A.

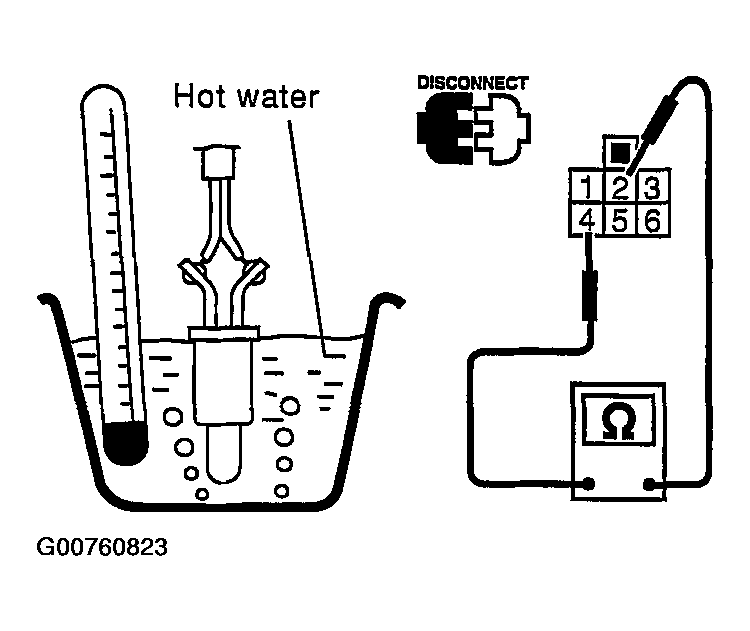

    Fig 2: Checking Resistance Between "Fuel Level Sensor Unit & Fuel Pump" Terminals 4 & 2 (2 Of 2)
    G00760823Courtesy of NISSAN MOTOR CO., U.S.A.
