Home >> Infiniti >> 2004 >> Q45 >> Repair and Diagnosis >> Engine Performance >> Engine Control System >> DTC P0222, P0223: TP Sensor >> Consult-II Reference Value In Data Monitor Mode

Consult-II Reference Value In Data Monitor Mode

Specification data are reference values.

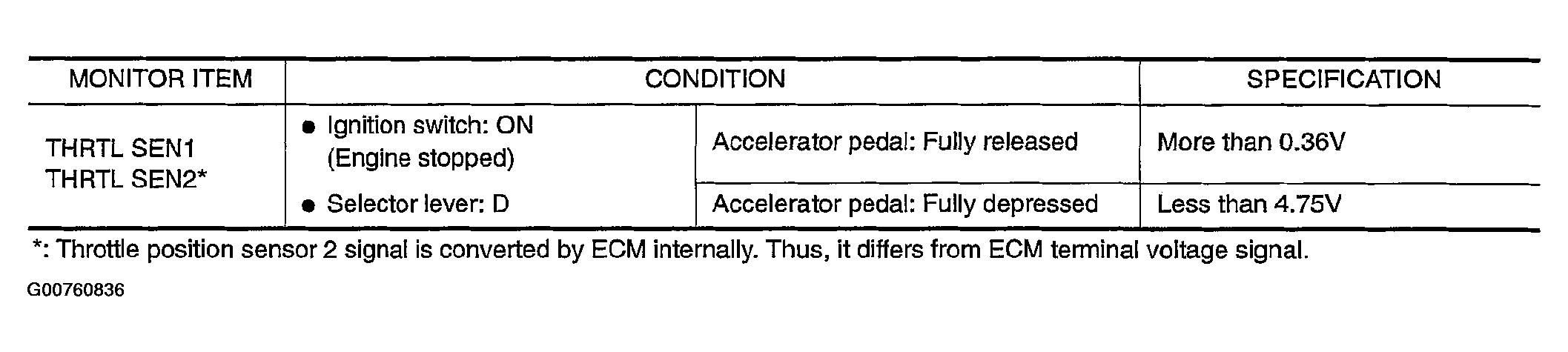

Fig 1: CONSULT-II Reference Value in Data Monitor Mode

G00760836

Courtesy of NISSAN MOTOR CO., U.S.A.
