Component Description

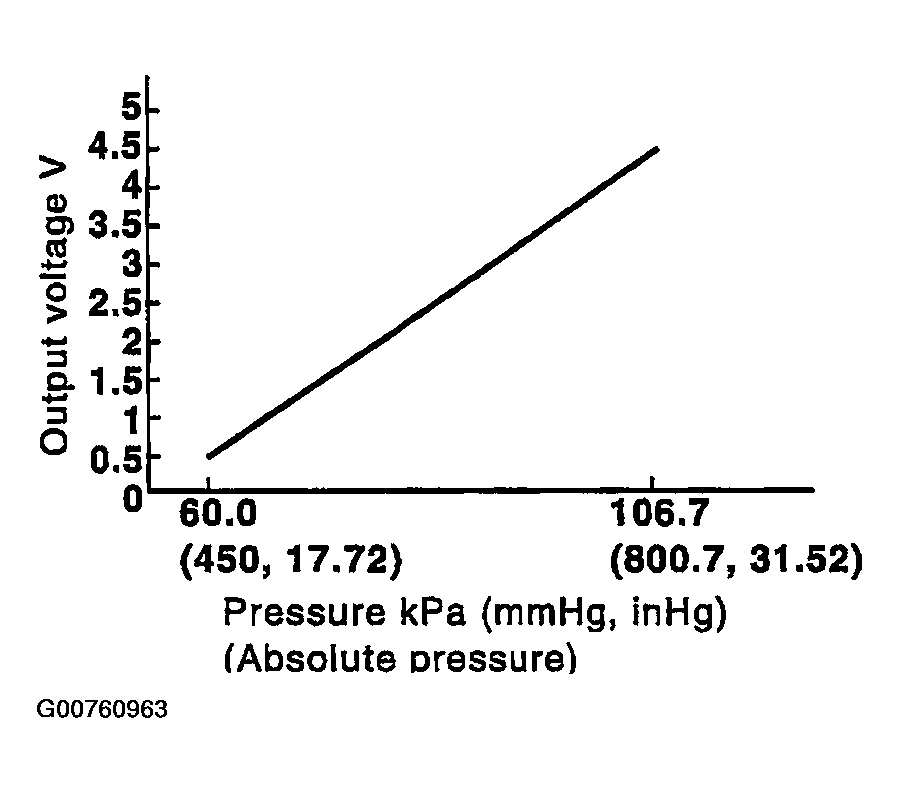

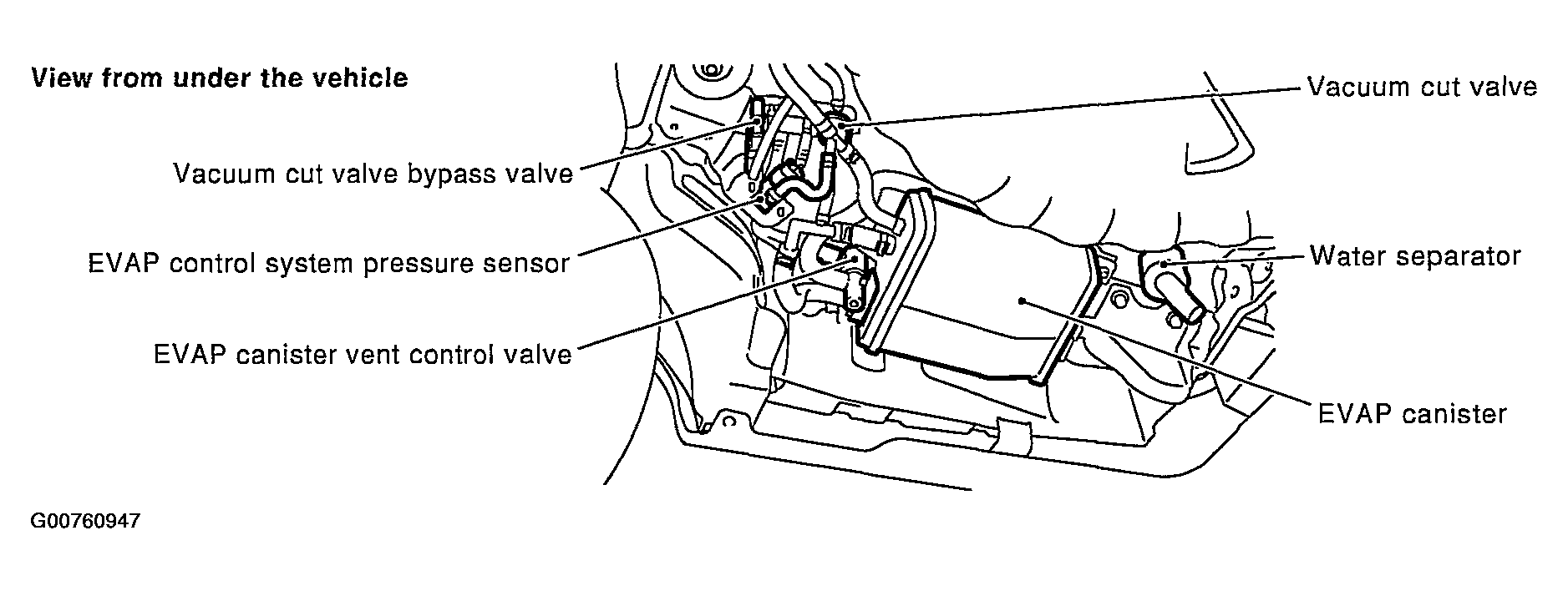

The EVAP control system pressure sensor detects pressure in the purge line. The sensor output voltage to the ECM increases as pressure increases. For location of EVAP control system pressure sensor, see Figure.
The EVAP control system pressure sensor detects pressure in the purge line. The sensor output voltage to the ECM increases as pressure increases. For location of EVAP control system pressure sensor, see Figure.
