Dropping Resistor

Check resistance between dropping resistor terminals 1 and 2.

1. Resistance: Approximately 0.9Ω [at 20°C (68°F)]

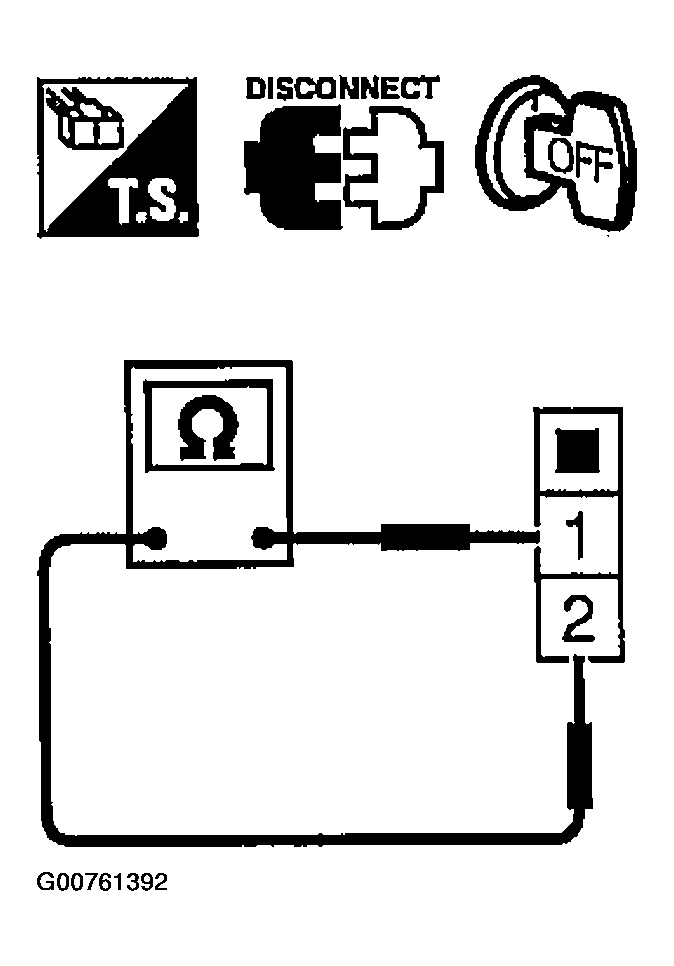

Fig 1: Checking Resistance Between Dropping Resistor Terminals 1 & 2

Courtesy of NISSAN MOTOR CO., U.S.A.
