Ignition Coil With Power Transistor

  1. Turn ignition switch OFF.
  2. Disconnect ignition coil harness connector.
  3. Check resistance between ignition coil terminals as follows.

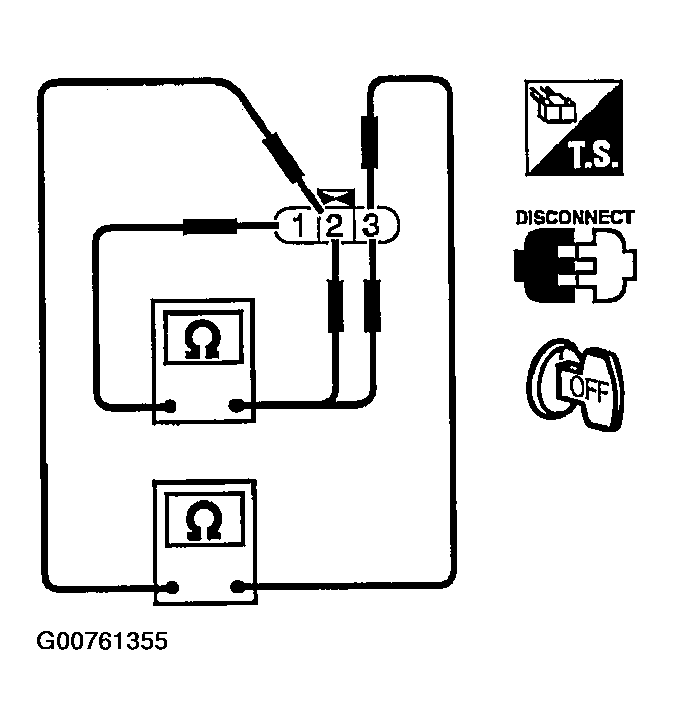

Fig 1: Checking Resistance Between Ignition Coil Terminals
G00761355Courtesy of NISSAN MOTOR CO., U.S.A.

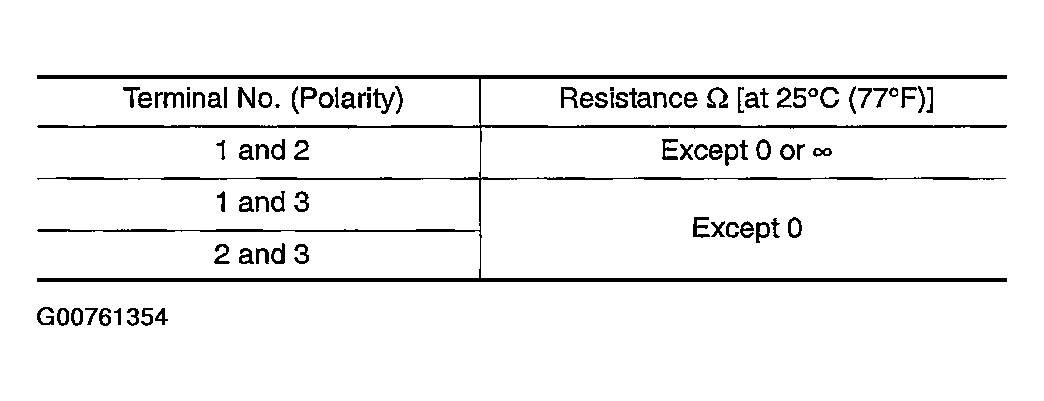

Fig 2: Test Results
G00761354Courtesy of NISSAN MOTOR CO., U.S.A.
