Active Test Mode
Test Item

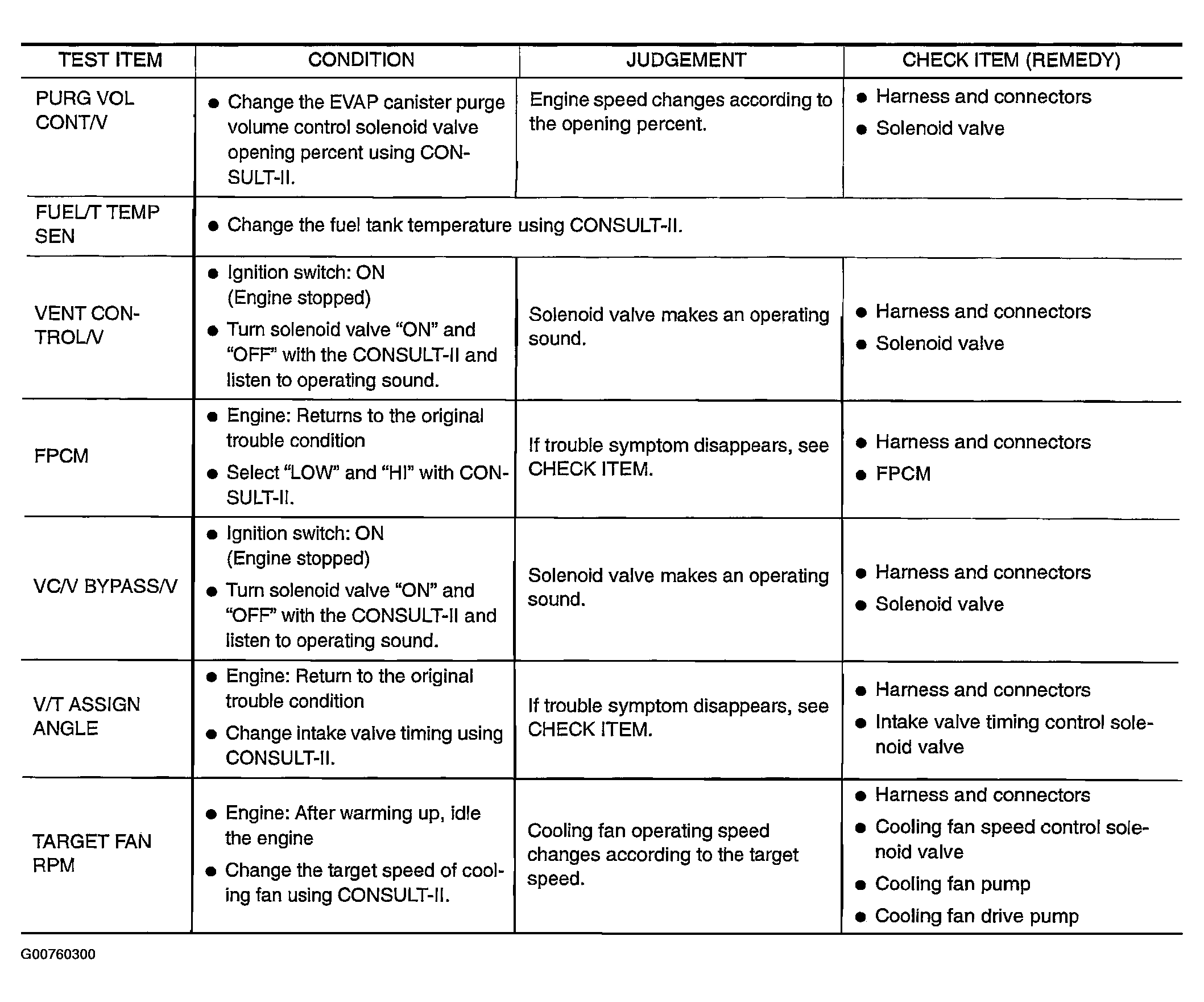

Fig 1: Test Items (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

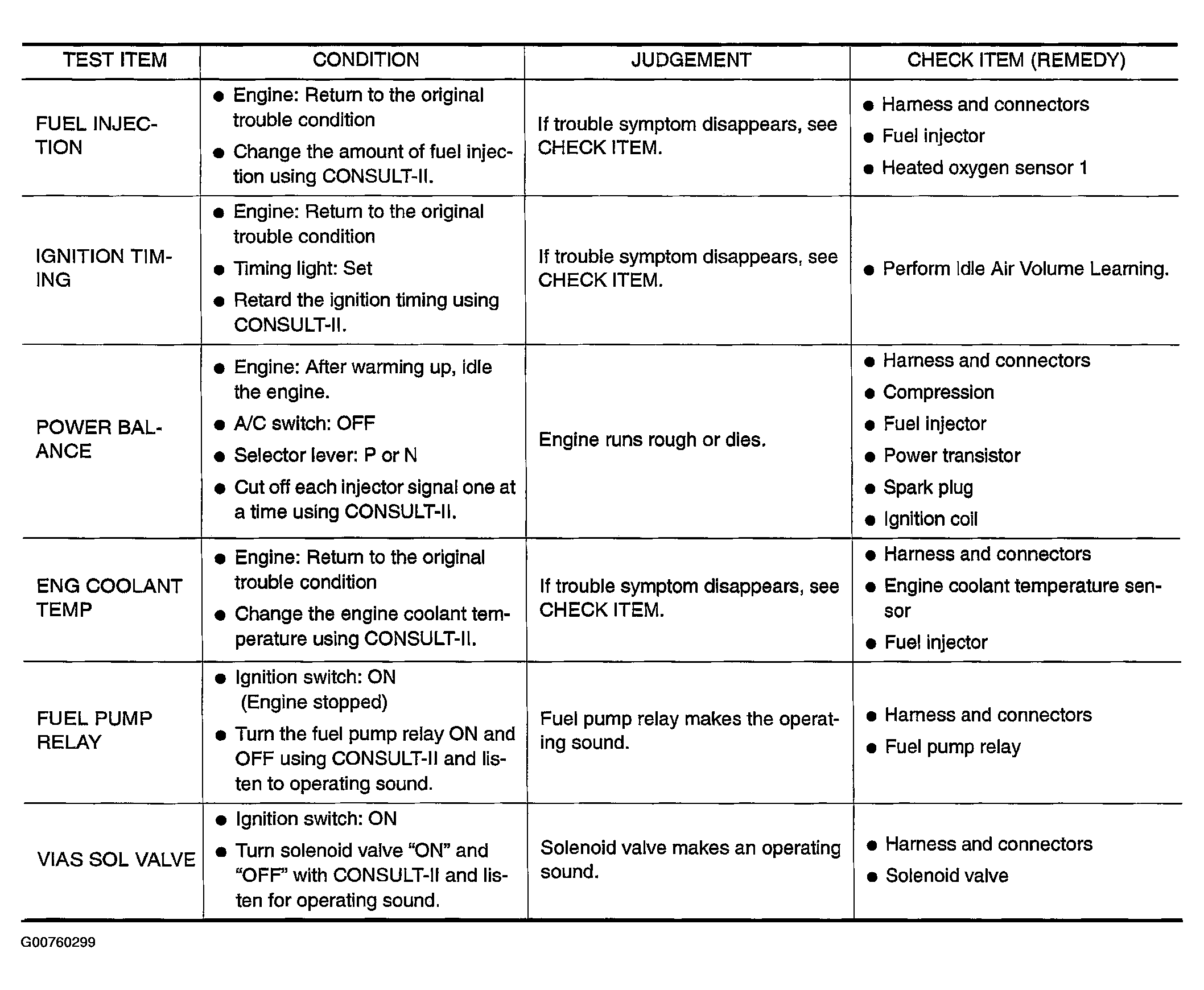

Fig 2: Test Items (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
