Inspection Procedure

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located under LH dash panel near the fuse box cover.
Turn ignition switch ON.

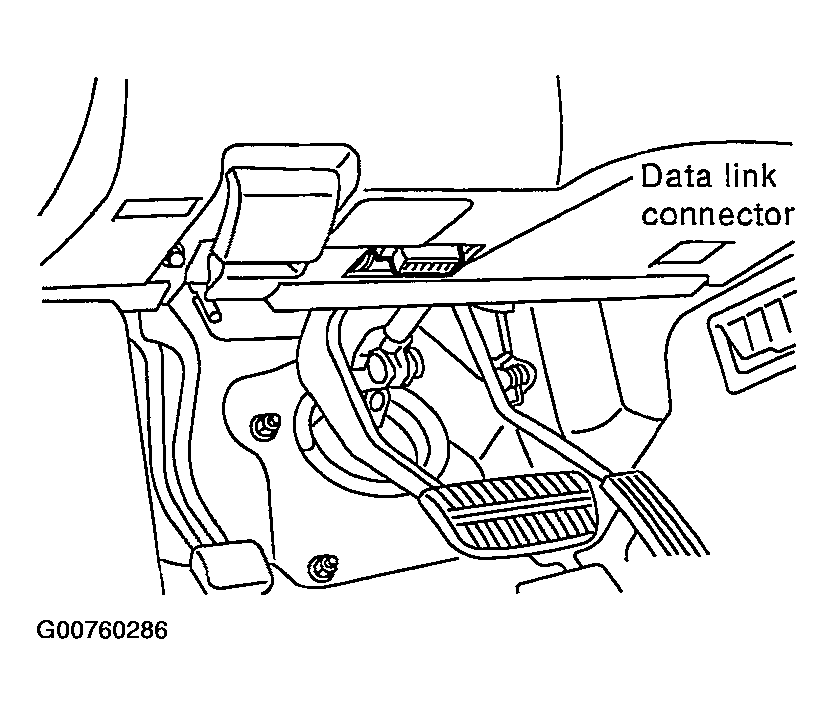

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".
Touch "ENGINE".
If "ENGINE" is not indicated, go to COMPUTER DATA LINES or CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .
Perform each diagnostic test mode according to each service procedure.
For further information, see the CONSULT-II Operation Manual.
