Home >> Infiniti >> 2004 >> QX56 AWD >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Fuel Tank >> Removal and Installation >> Notes

Removal and Installation: Notes

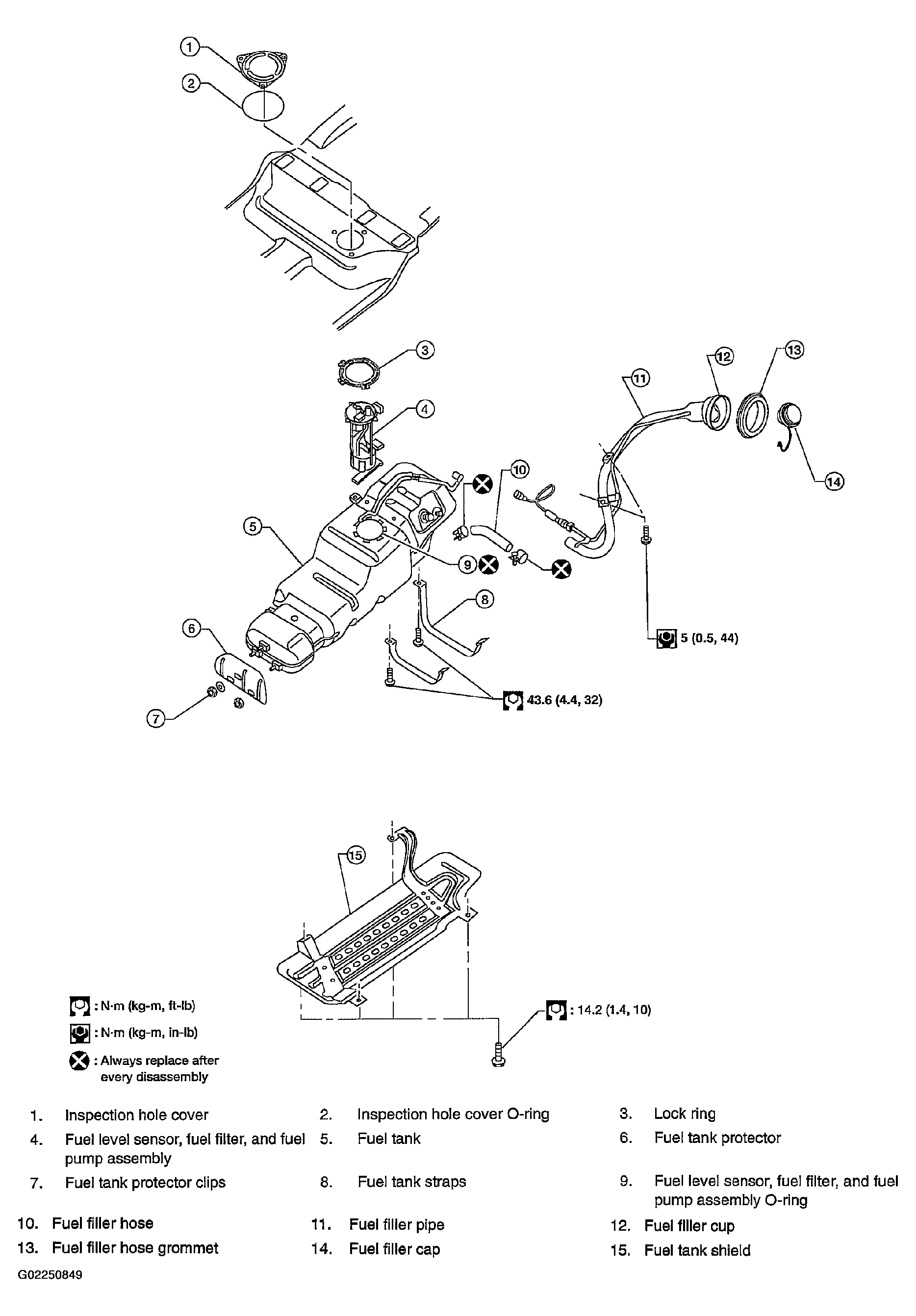

Fig 1: Exploded View And Torque Specification Of Fuel Tank

G02250849

Courtesy of NISSAN MOTOR CO., U.S.A.
