Key Switch
Check continuity between terminals of the key switch and key lock solenoid.

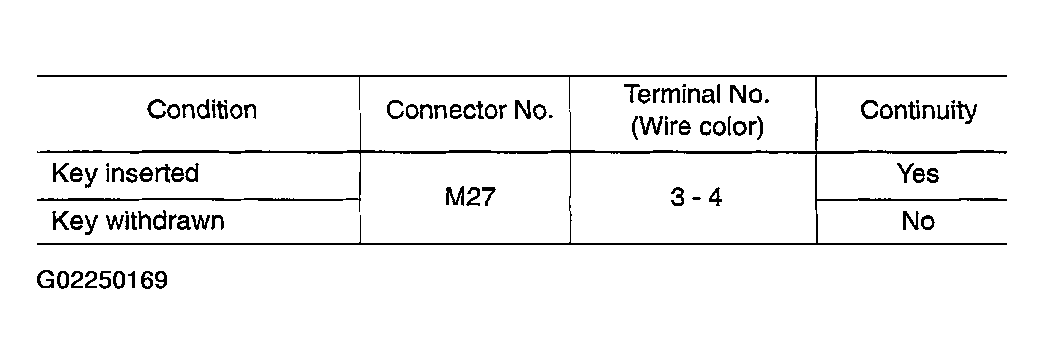

Fig 1: Condition Of Key
Courtesy of NISSAN MOTOR CO., U.S.A.

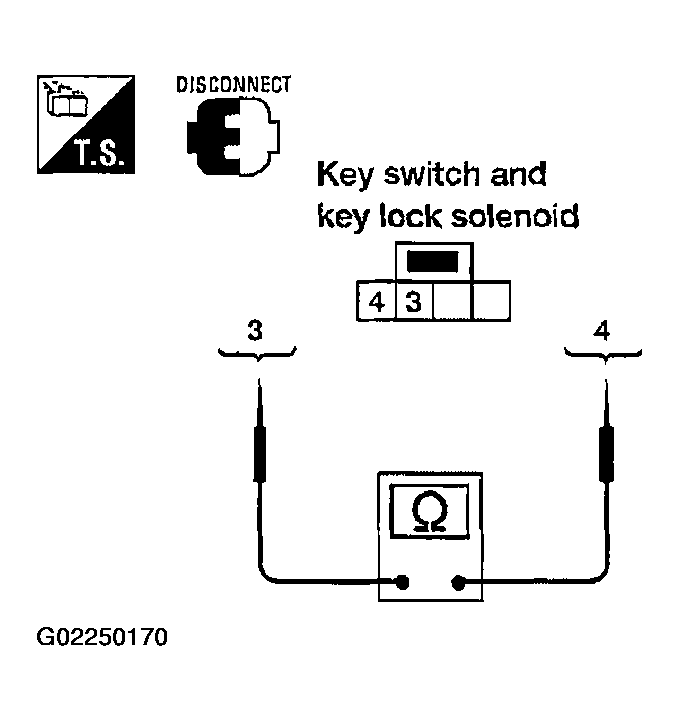

Fig 2: Checking Continuity Between Terminals Of The Key Switch And Key Lock Solenoid
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
