Automatic Transmission
>>
Overhaul
>>
Components
>>
2WD models
2WD models

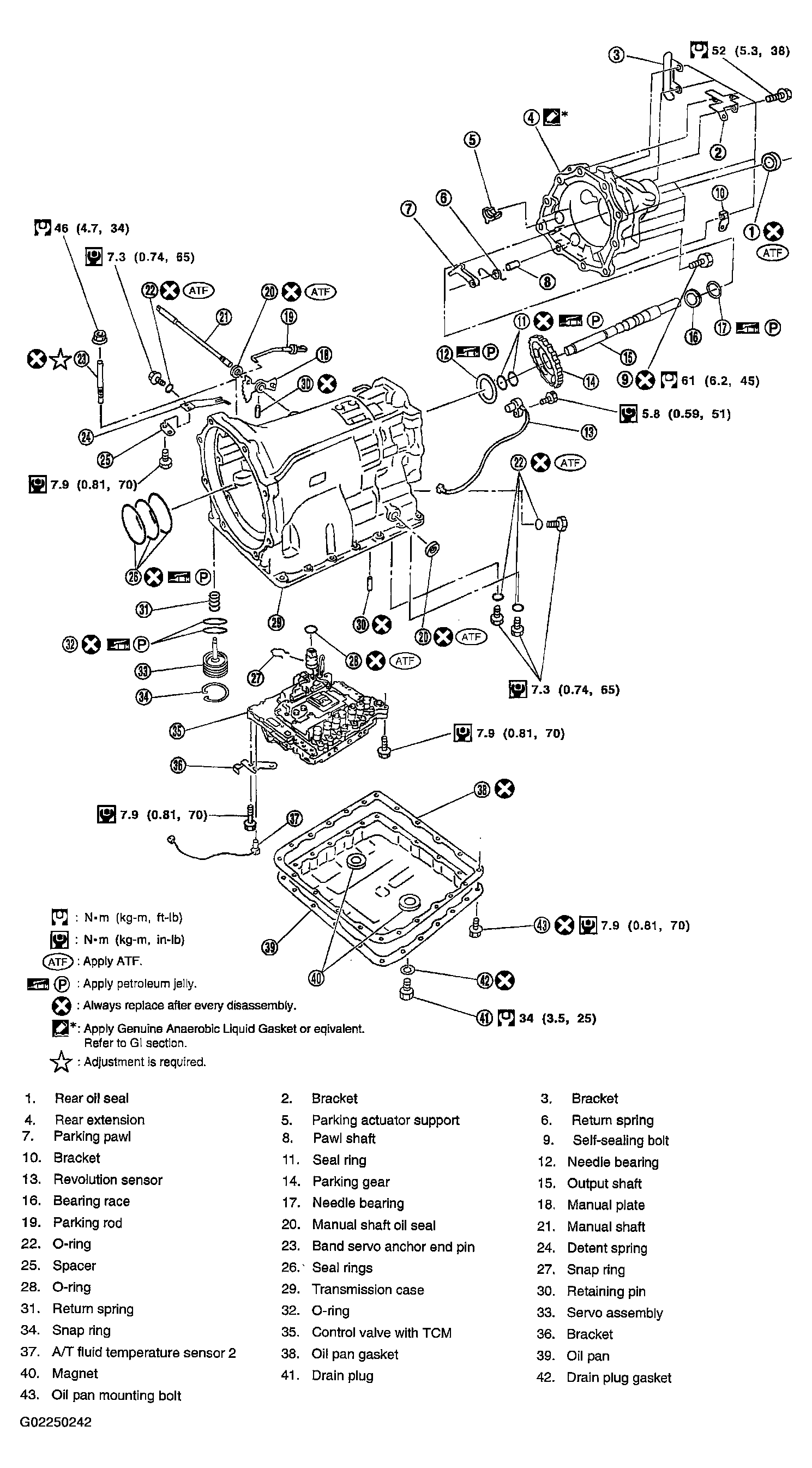

Fig 1: Exploded View And Torque Specification Of Transmission (2WD)
Courtesy of NISSAN MOTOR CO., U.S.A.

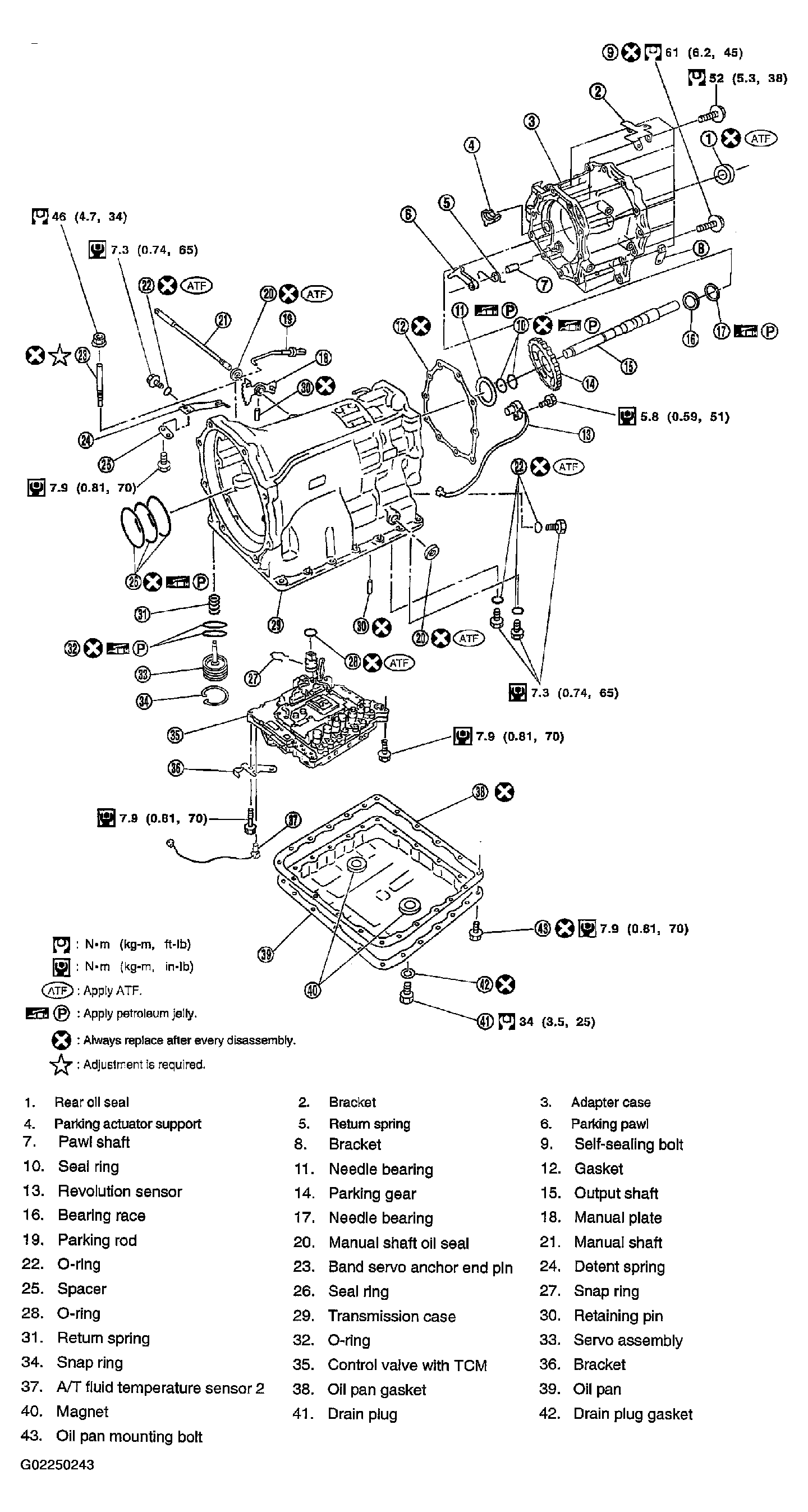

Fig 2: Exploded View And Torque Specification Of Transmission (4WD)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
