Home >> Infiniti >> 2005 >> FX35 AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control System - VQ35DE >> Ignition Signal >> Component Inspection >> Condenser

Component Inspection: Condenser

  1. Turn ignition switch OFF.
  2. Disconnect condenser harness connector.
  3. Check resistance between condenser terminals 1 and 2.
    1. Resistance: Above 1 Mohm at 25°C (77°F)

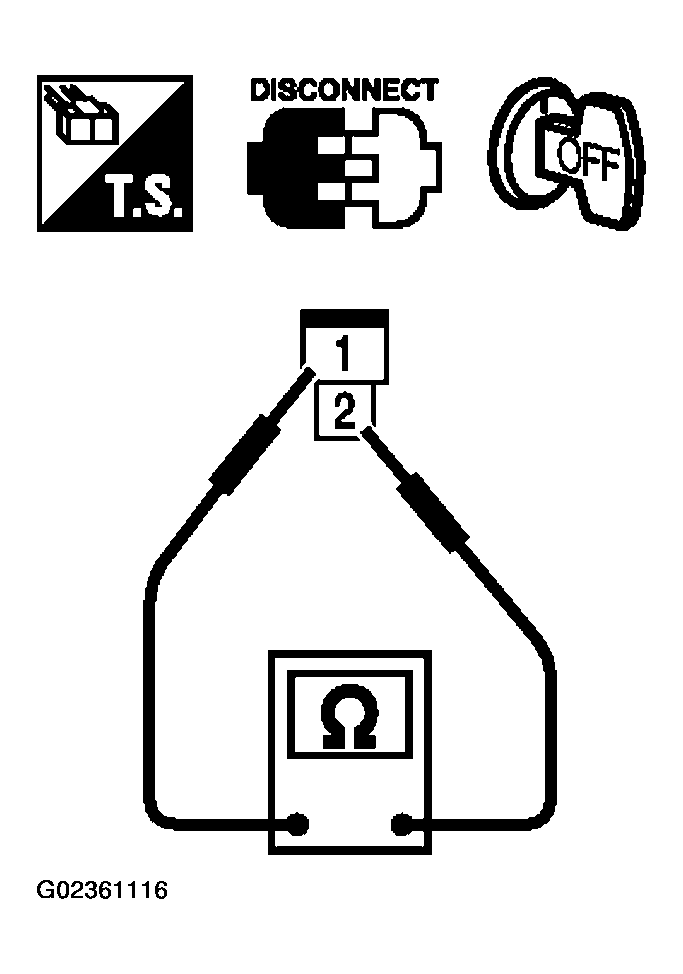

    Fig 1: Checking Resistance Between Condenser Terminals 1 And 2
    G02361116Courtesy of NISSAN MOTOR CO., U.S.A.
