Terminals and Reference Values for Driver Seat Control Unit: Notes

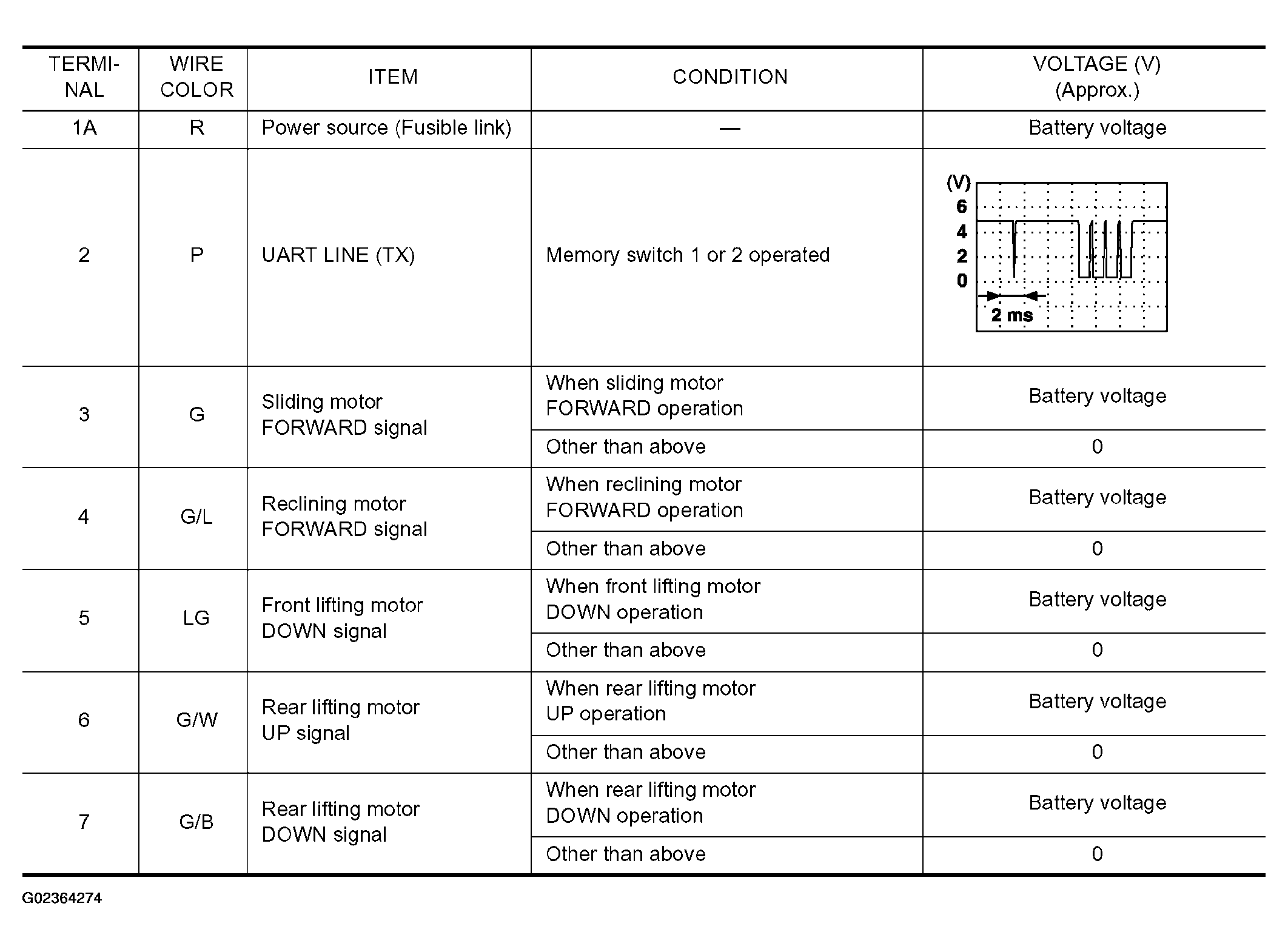

Fig 1: Terminals And Reference Values For Driver Seat Control Unit Table (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

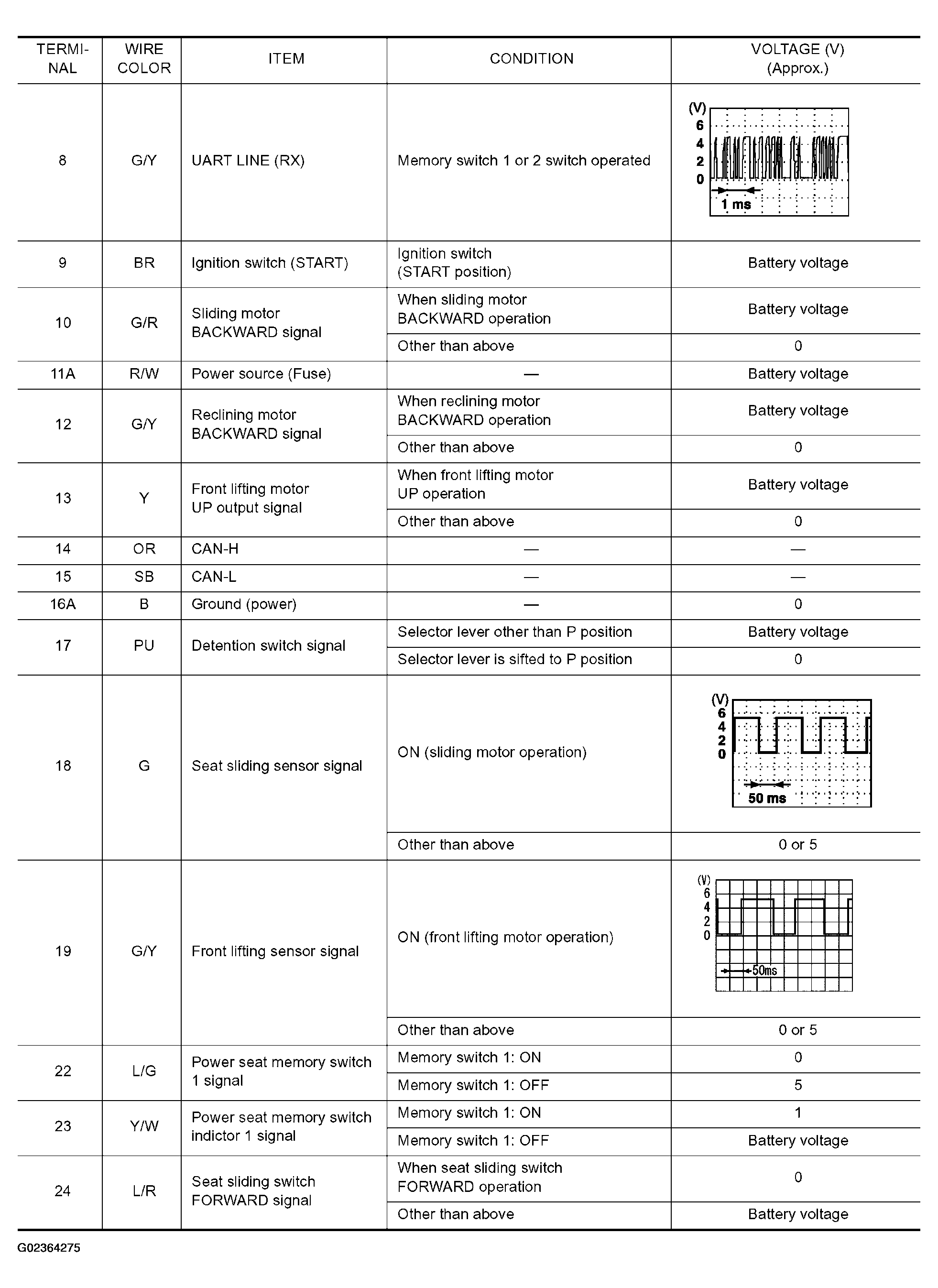

Fig 2: Terminals And Reference Values For Driver Seat Control Unit Table (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

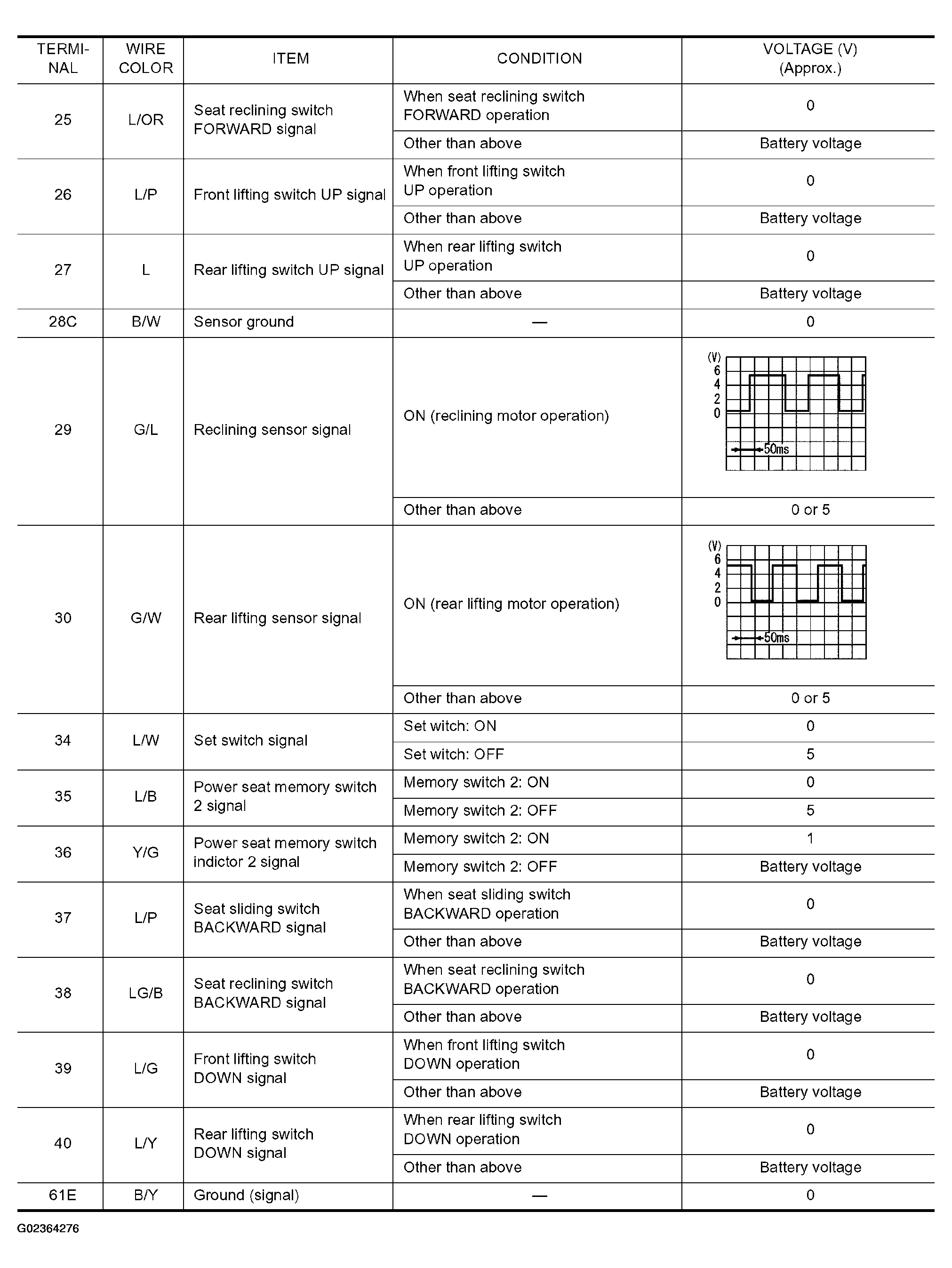

Fig 3: Terminals And Reference Values For Driver Seat Control Unit Table (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
