Home >> Infiniti >> 2005 >> FX45 >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control System >> Steering Angle Sensor >> Removal and Installation >> Removal

Removal and Installation: Removal

  1. Remove spiral cable assembly. Refer to "SPIRAL CABLE ".
  2. Remove steering angle sensor from spiral cable assembly.

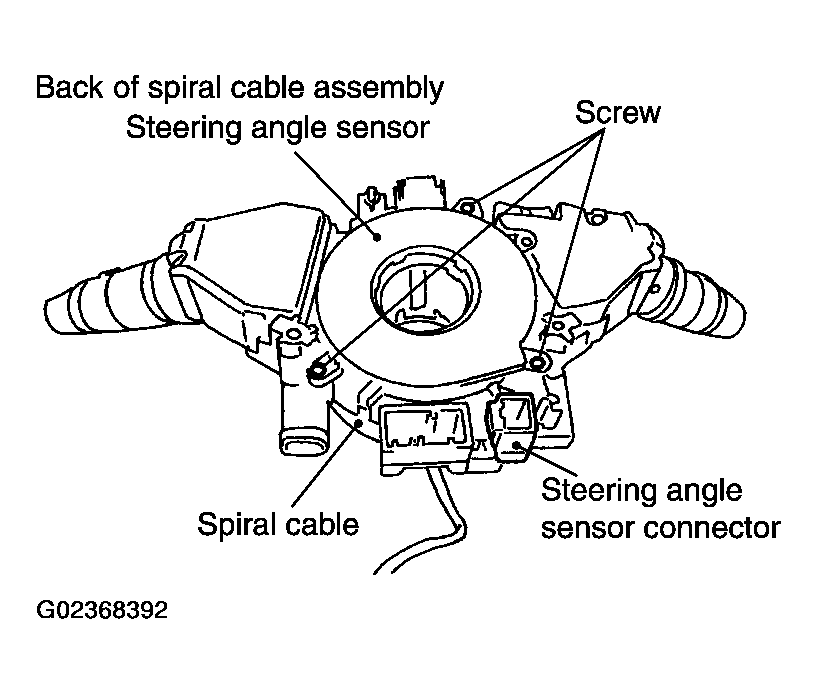

    Fig 1: Removing Steering Angle Sensor From Spiral Cable Assembly
    G02368392Courtesy of NISSAN MOTOR CO., U.S.A.
