Home >> Infiniti >> 2005 >> FX45 >> Repair and Diagnosis >> Engine Mechanical >> Engine Lubrication System >> Engine Oil >> Inspection >> Engine Oil Level

Engine Oil Level

NOTE: Before starting engine, put vehicle horizontally and check the engine oil level. If engine is already started, stop it and allow 15 minutes before checking.
  1. Pull out oil level gauge and wipe it clean.
  2. Insert oil level gauge and make sure the engine oil level is within the range shown in the figure.
  3. If it is out of range, adjust it.

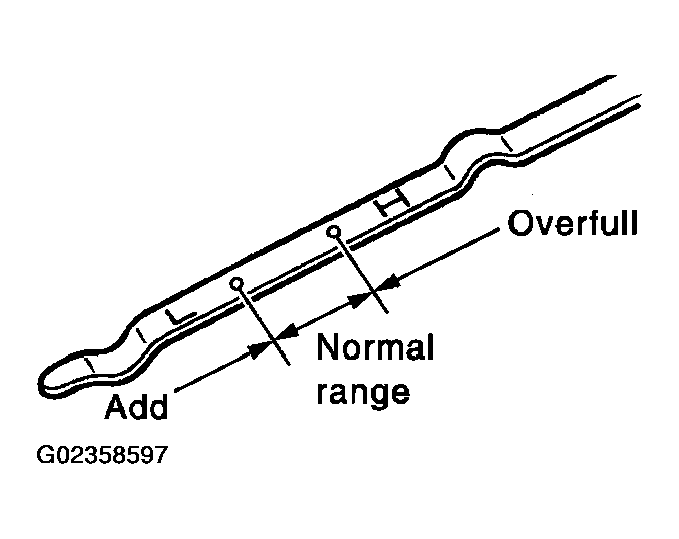

    Fig 1: Identifying Oil Level Gauge
    G02358597Courtesy of NISSAN MOTOR CO., U.S.A.
