Stop Lamp Switch

  1. Turn ignition switch OFF.
  2. Disconnect stop lamp switch harness connector.
  3. Check harness continuity between stop lamp switch terminals 1 and 2 under the following conditions.
    CONTINUITY SPECIFICATIONS

    Condition Continuity
    When brake pedal: Fully released. Should not exist.
    When brake pedal: Slightly depressed. Should exist.
  4. If NG, adjust stop lamp switch installation, refer to "BRAKE PEDAL ", and perform step 3 again.

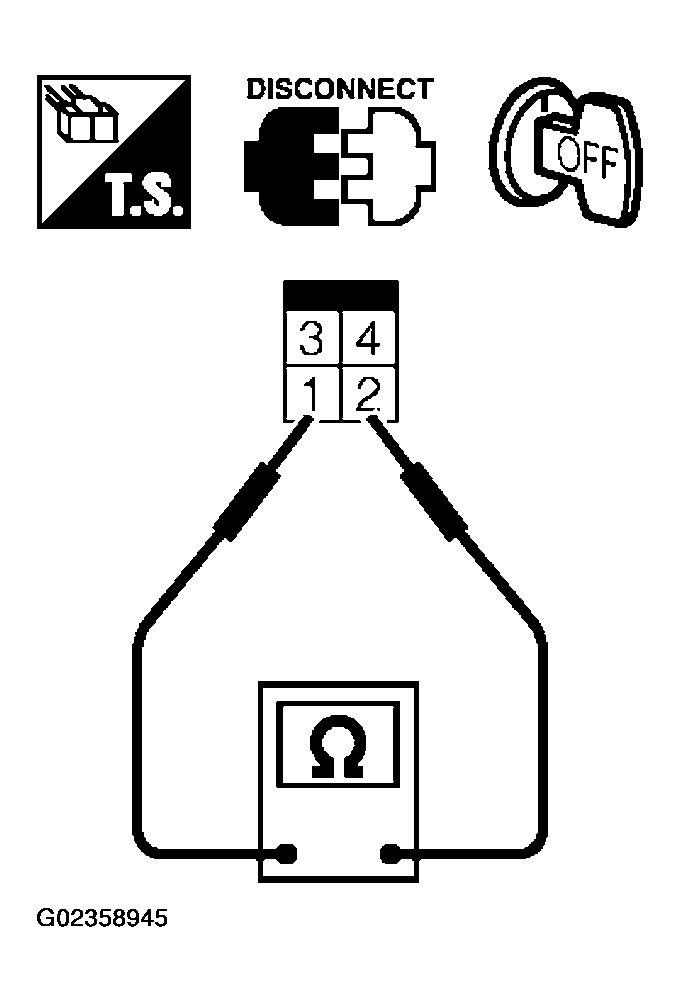

    Fig 1: Checking Harness Continuity Between Stop Lamp Switch Terminals
    G02358945Courtesy of NISSAN MOTOR CO., U.S.A.
