Engine Control System - VK45DE
>>
ASD Indicator
>>
Wiring Diagram
ASD Indicator: Wiring Diagram

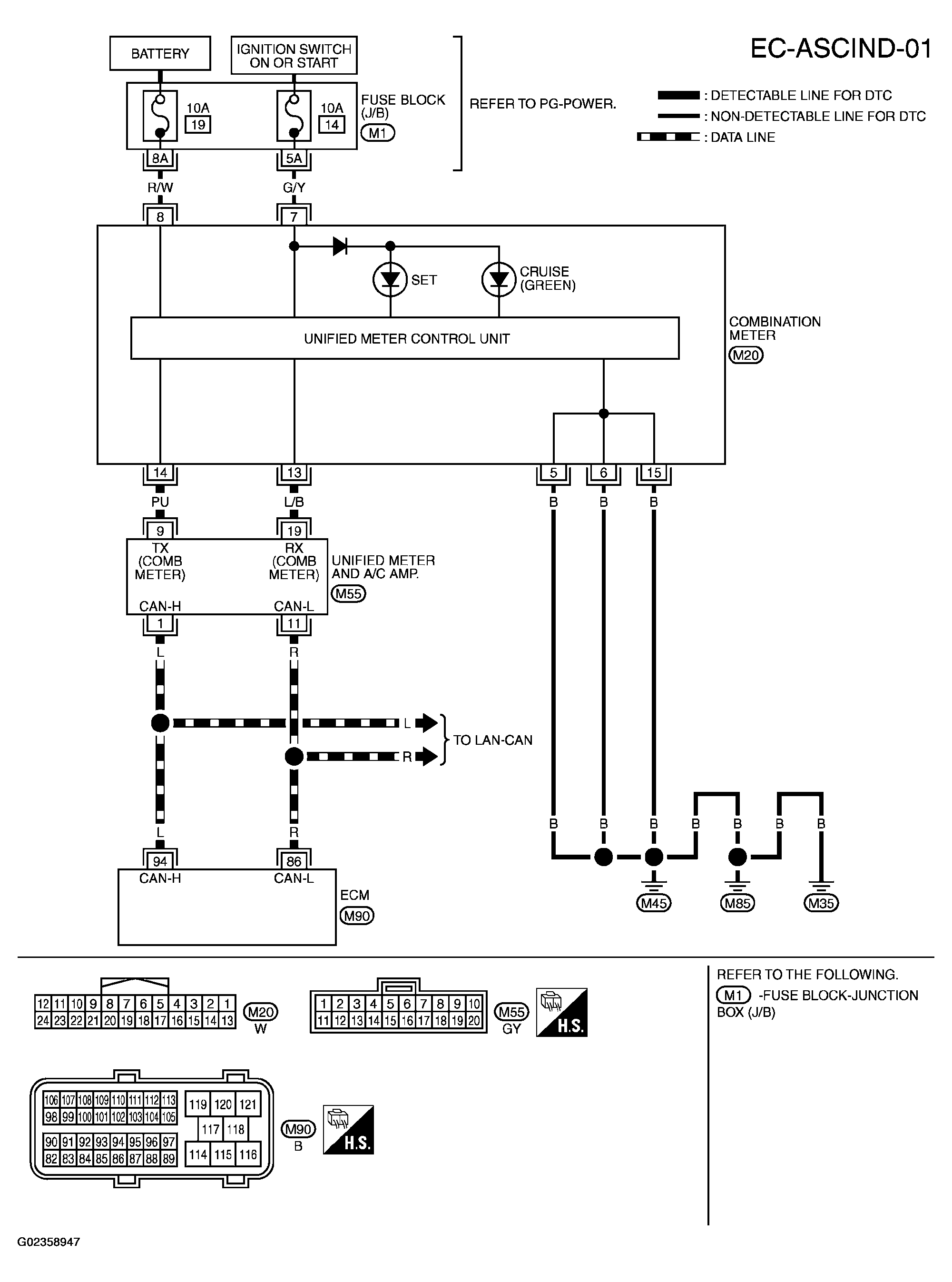

Fig 1: Wiring Diagram - EC-ASCIND-01
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
