With CONSULT-II

  1. Check the VIN of the vehicle and note it. Refer to "IDENTIFICATION INFORMATION ".
  2. Turn ignition switch ON and engine stopped.
  3. Select "VIN REGISTRATION" in "WORK SUPPORT" mode.
  4. Follow the instruction of CONSULT-II display.

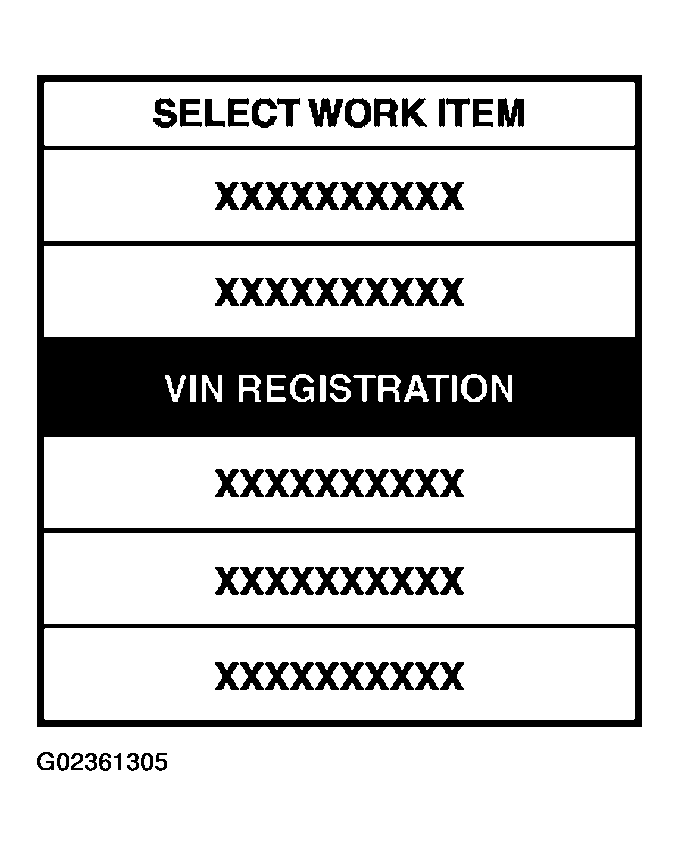

    Fig 1: Identifying CONSULT-II Display Screen VIN Registration
    G02361305Courtesy of NISSAN MOTOR CO., U.S.A.
