Hydraulic Line: Components

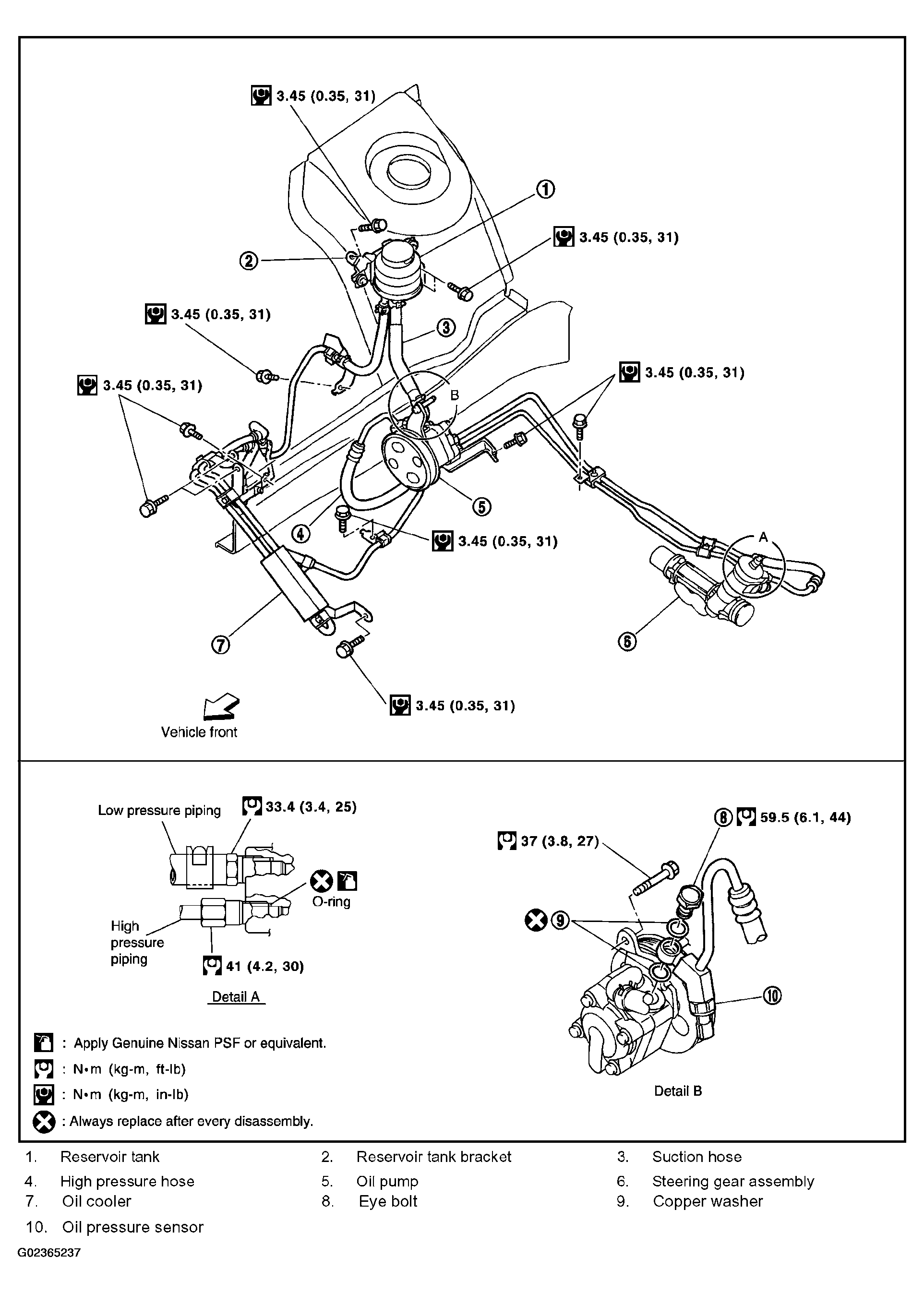

Fig 1: Hydraulic Line Replacement Components With Torque Specifications (VQ35DE 2WD Model)
Courtesy of NISSAN MOTOR CO., U.S.A.

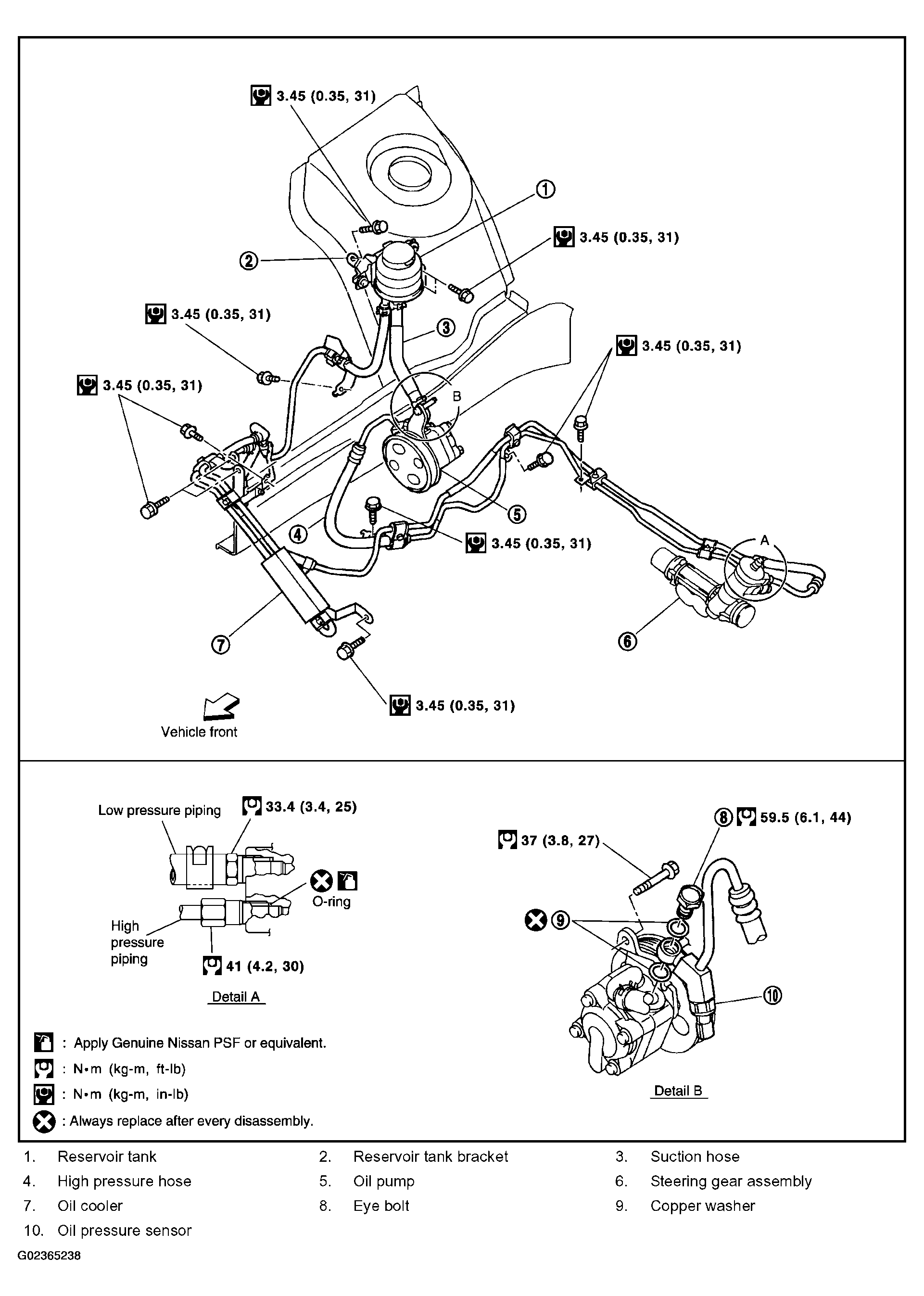

Fig 2: Hydraulic Line Replacement Components With Torque Specifications (VQ35DE AWD Model)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
