Disassembly and Assembly: Assembly

NOTE: Make sure piston rod on strut is not damaged when attaching components to strut.

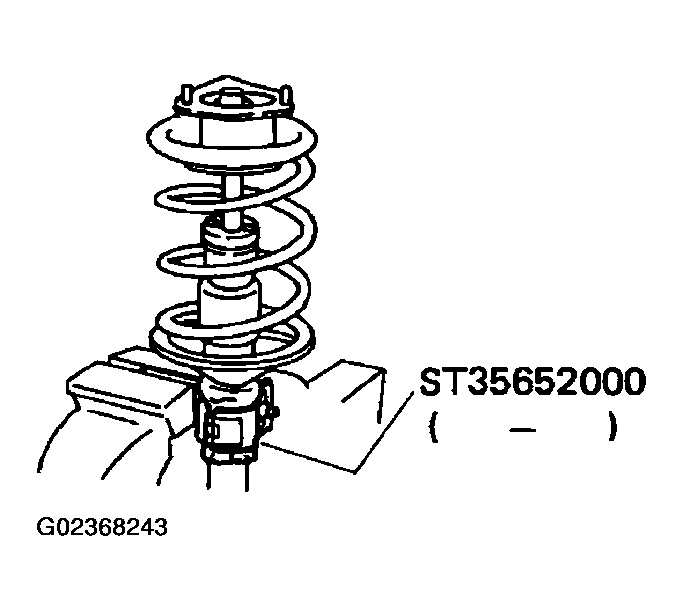

Install strut attachment (SST) to strut and fix it in a vise.
CAUTION: When installing strut attachment (SST) to strut, wrap a shop cloth around strut to protect it from damage.

Fig 1: Installing Strut Attachment To Strut And Fix It In Vise
Courtesy of NISSAN MOTOR CO., U.S.A.
Compress coil spring using a spring compressor (commercial service tool), and install it onto strut.
CAUTION:

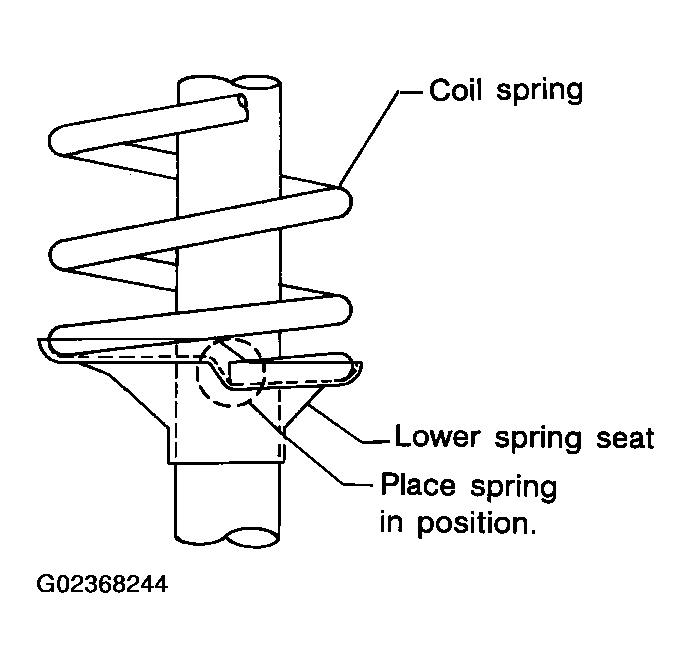

- Face tube side of coil spring downward. Align lower end to spring rubber seat as shown in the figure.
- Be sure spring compressor (commercial service tool) is securely attached to coil spring. Compress coil spring.
Apply soapy water to bound bumper and insert into mounting insulator.
CAUTION: Do not use machine oil.

Fig 2: Installing Coil Spring Onto Strut
Courtesy of NISSAN MOTOR CO., U.S.A.
Install mounting insulator bracket, mounting bearing, bound bumper, spring upper seat, spring upper rubber seat and spring lower rubber seat.

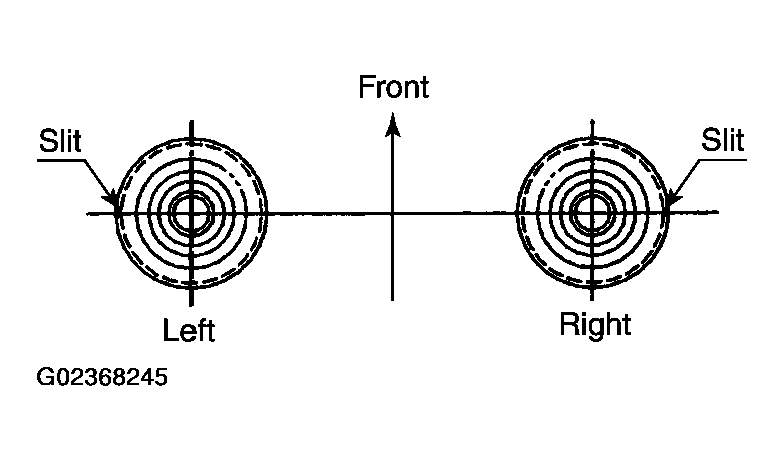

- Installation position of spring upper seat is as shown in the figure.
Fig 3: Identifying Installation Position Of Spring Upper Seat
Courtesy of NISSAN MOTOR CO., U.S.A.

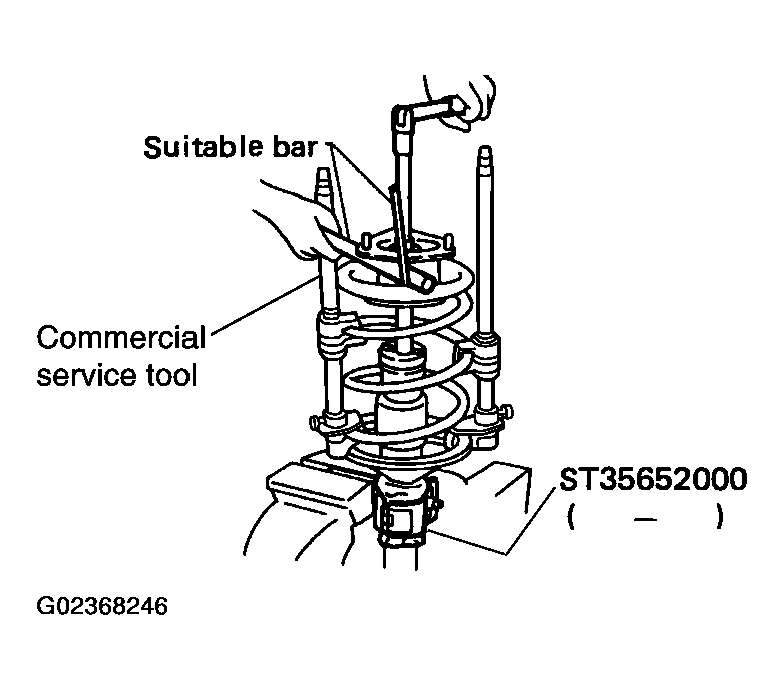

Fix mounting insulator, then tighten piston rod lock nut with specified torque.
CAUTION: Be careful not to deform mounting insulator bracket.
Gradually release spring compressor (commercial service tool), and remove coil spring.
CAUTION: Loosen spring compressor while making sure coil spring attachment position does not move.
Remove strut attachment (SST) from strut.

Fig 4: Tightening Piston Rod Lock Nut
Courtesy of NISSAN MOTOR CO., U.S.A.
