Control Device Removal and Installation: Removal
- Disconnect lower lever of control device and control rod.

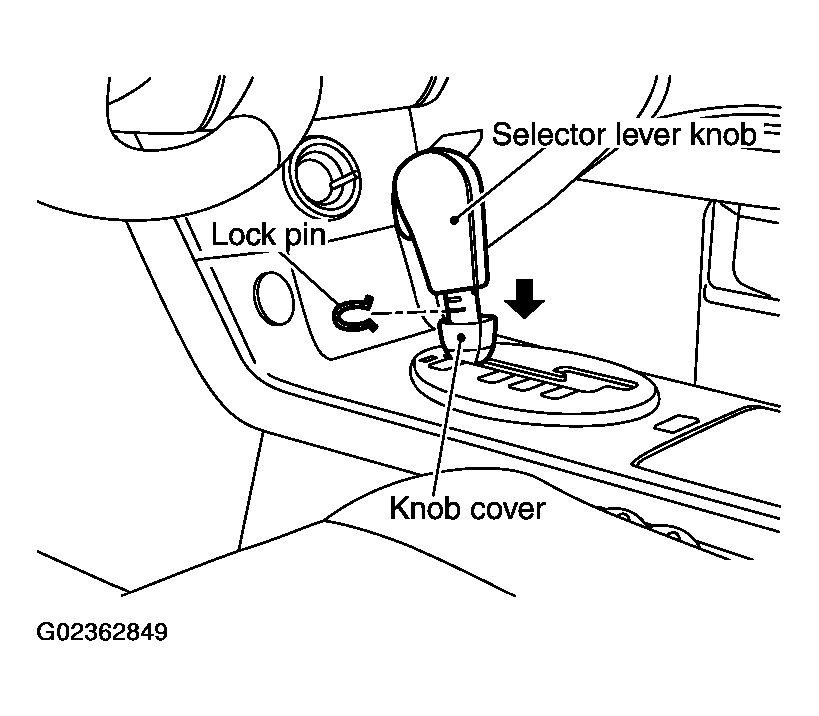

- Remove knob cover below selector lever knob downward.
- Pull lock pin out of selector lever knob.
- Remove selector lever knob.
- Remove console finisher.
- Refer to "COMPONENT PARTS DRAWING ".
- Remove center console.
- Refer to "COMPONENT PARTS DRAWING ".
- Remove key interlock cable from control device.
- Refer to "REMOVAL AND INSTALLATION ".
- Disconnect A/T device harness connector.
- Remove control device assembly.
