Home >> Infiniti >> 2005 >> FX45 >> Repair and Diagnosis >> Transmission >> Transfer Case >> AWD Control Unit >> Removal and Installation >> Removal

Removal and Installation: Removal

  1. Remove the dash side finisher. Refer to "DASH SIDE FINISHER ".
  2. Disconnect AWD control unit connector.
  3. Remove the AWD control unit.

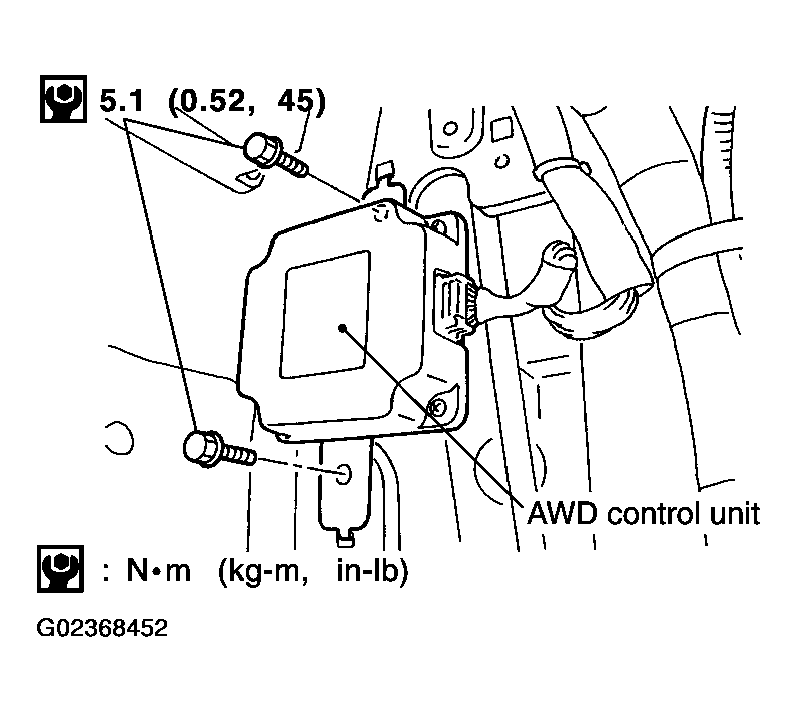

    Fig 1: Removing AWD Control Unit With Torque Specifications
    G02368452Courtesy of NISSAN MOTOR CO., U.S.A.
