Removal and Installation: Installation

Note the following, and install in the reverse order of removal.

• When installing the transfer to the transmission, install the mounting bolts following the standard below.

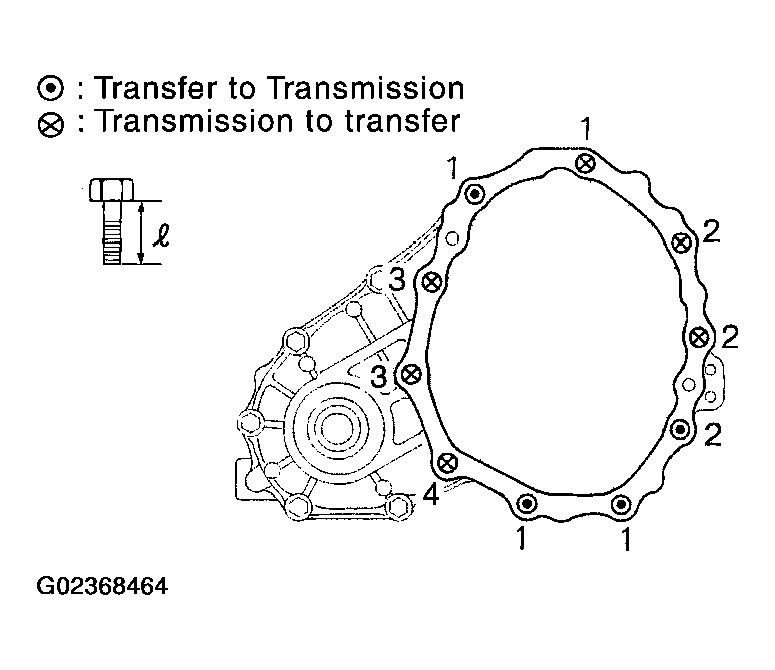

  Fig 1: Identifying Bolt Installation Process

  Courtesy of NISSAN MOTOR CO., U.S.A.

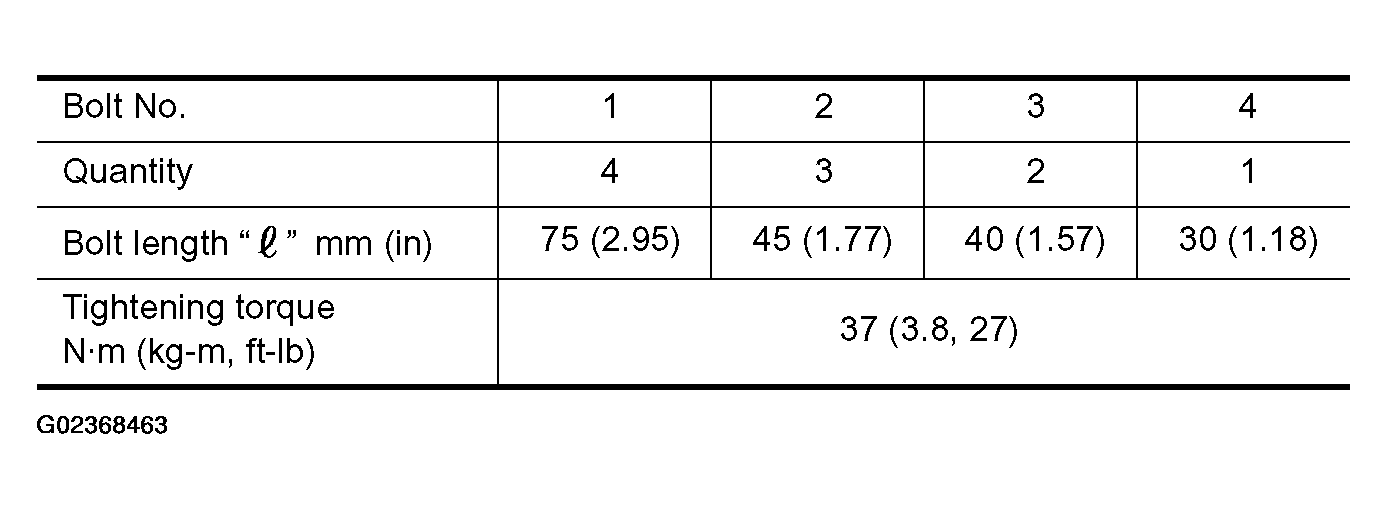

  Fig 2: Bolt Specification

  Courtesy of NISSAN MOTOR CO., U.S.A.
• After the installation, check the fluid level and for fluid leakage. Refer to "INSPECTION ".
