ASCD Clutch Switch

  1. Turn ignition switch OFF.
  2. Disconnect ASCD clutch switch harness connector.
  3. Check continuity between ASCD clutch switch terminals 1 and 2 under the following conditions.
    CONDITION CHECK

    Condition Continuity
    Clutch pedal: Fully released. Should exist.
    Clutch pedal: Slightly depressed. Should not exist.

    If NG, adjust ASCD clutch switch installation, refer to "CLUTCH PEDAL ", and perform step 3 again.

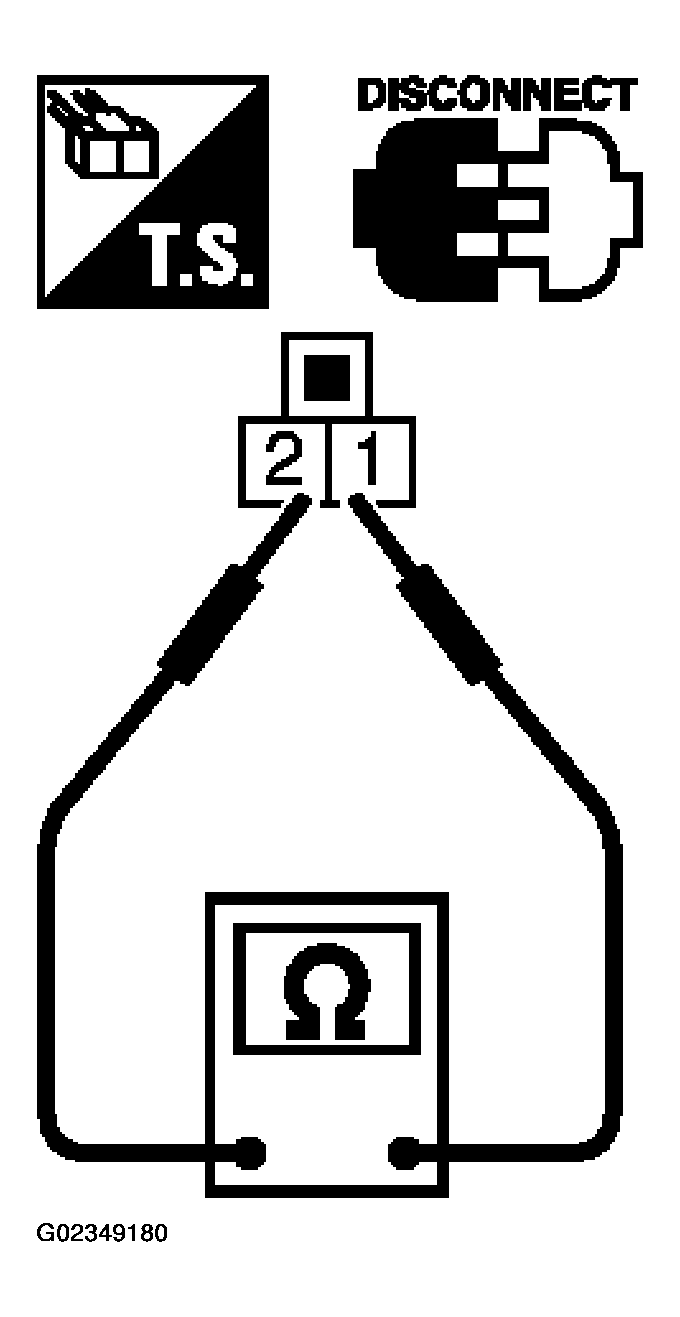

    Fig 1: Checking Continuity Between ASCD Clutch Switch Terminals 1 And 2
    G02349180Courtesy of NISSAN MOTOR CO., U.S.A.
