Home >> Infiniti >> 2005 >> G35 x >> Repair and Diagnosis >> Engine Performance >> Engine Control System - Sedan >> DTC P2135: TP Sensor >> DTC Confirmation Procedure >> With Consult-II

With Consult-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and let it idle for 1 second.
  4. If DTC is detected, go to "Diagnostic Procedure ".

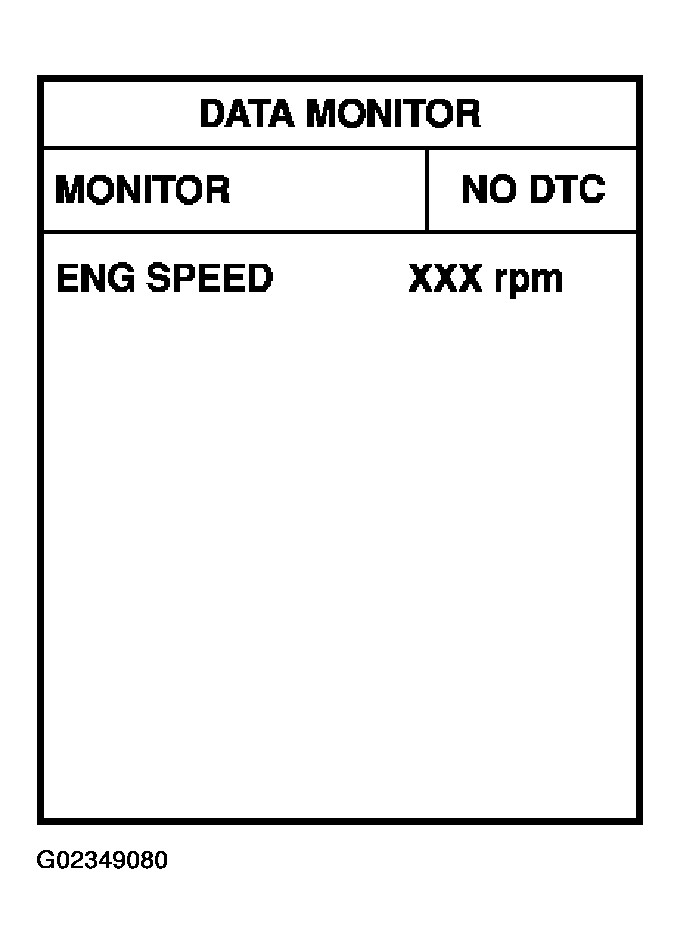

    Fig 1: Data Monitor Display
    G02349080Courtesy of NISSAN MOTOR CO., U.S.A.
