Consult-II Basic Operation Procedure

  1. Turn ignition switch "OFF".
  2. Connect "CONSULT-II" and CONSULT-II CONVERTER to data link connector.

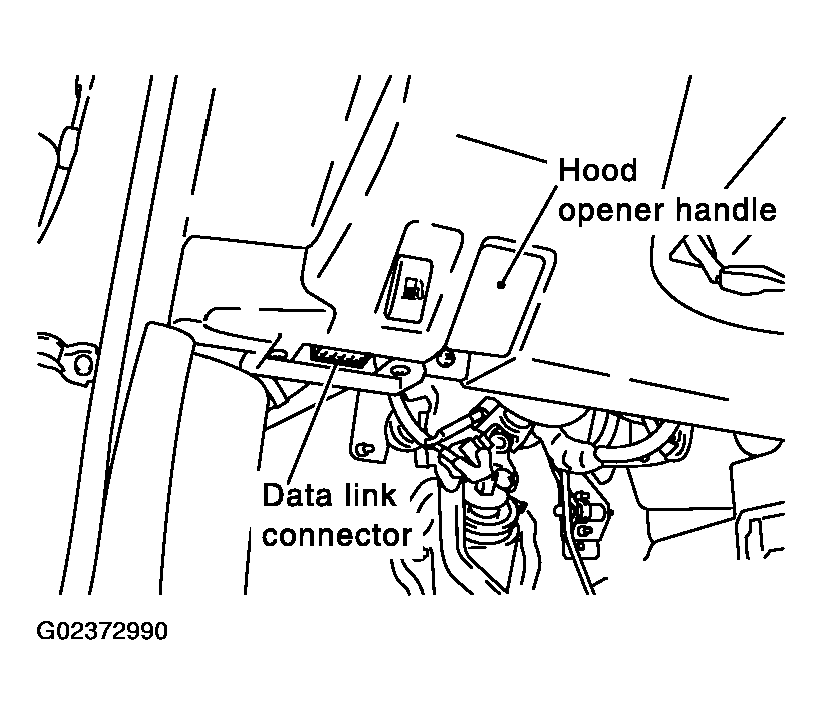

    Fig 1: CONSULT-II Basic Operation Procedure (1 Of 4)
    G02372990Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch "ON".
  4. Touch "START (NISSAN BASED VHCL)".

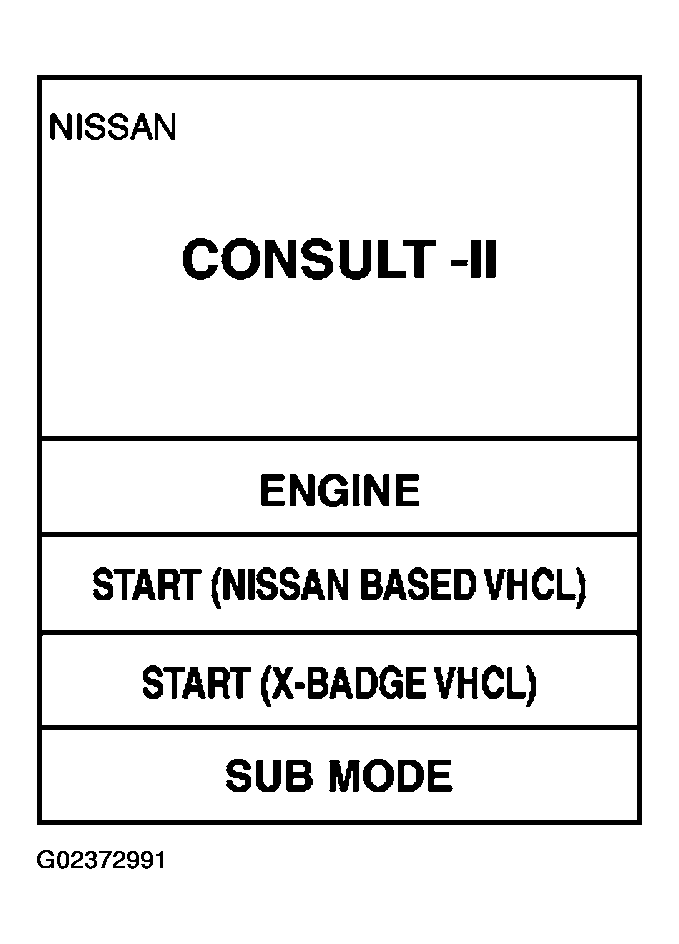

    Fig 2: CONSULT-II Basic Operation Procedure (2 Of 4)
    G02372991Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "IVMS" on the "SELECT SYSTEM" screen.

    If "IVMS" is not indicated, "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

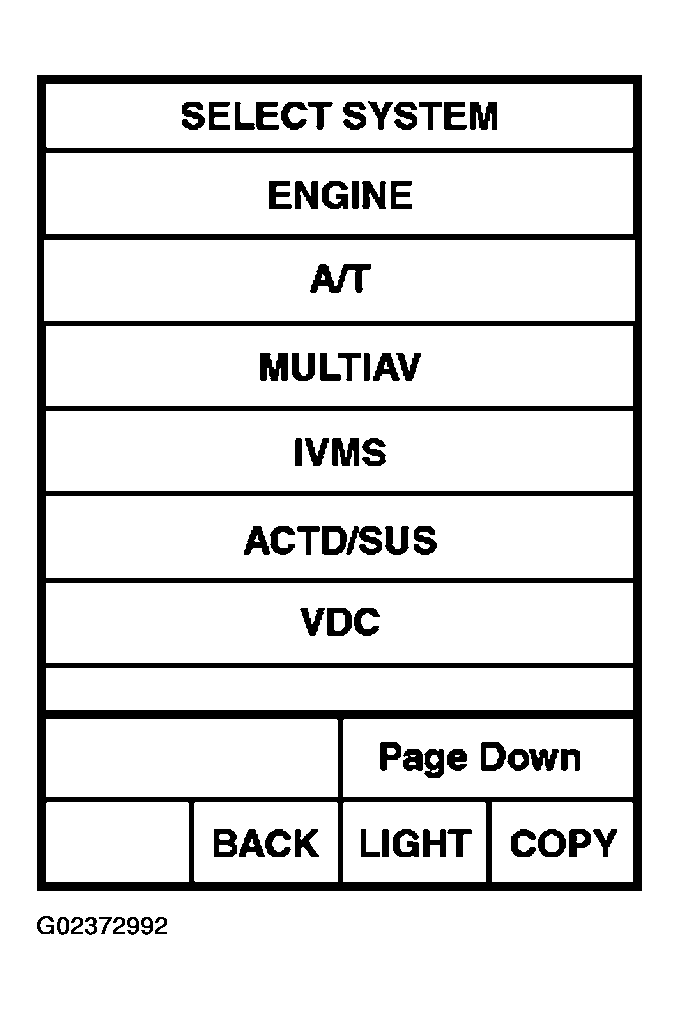

    Fig 3: CONSULT-II Basic Operation Procedure (3 Of 4)
    G02372992Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Check the model specification, and touch either "WITH SUNROOF" or "WITHOUT SUNROOF" on the "SELECT SYS COND" screen.
  7. Touch "OK". If the selection is wrong, touch "CANCEL".
  8. Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.

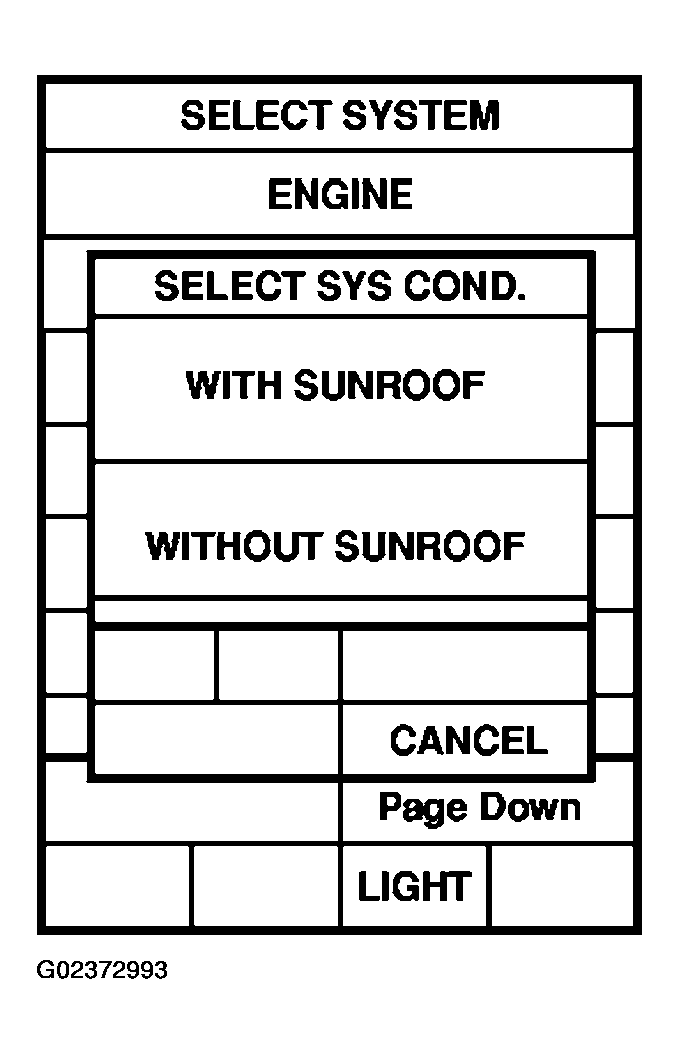

    Fig 4: CONSULT-II Basic Operation Procedure (4 Of 4)
    G02372993Courtesy of NISSAN MOTOR CO., U.S.A.
