Home >> Infiniti >> 2005 >> Q45 >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control System >> G Sensor >> Removal and Installation >> Removal

Removal and Installation: Removal

  1. Remove center console. Refer to "REMOVAL ".
  2. Remove harness connector.
  3. Remove rear ventilator duct No. 2. Refer to "REMOVAL OF REAR VENTILATOR DUCTS ".
  4. Remove installation bolts. Remove yaw rate/side G sensor.

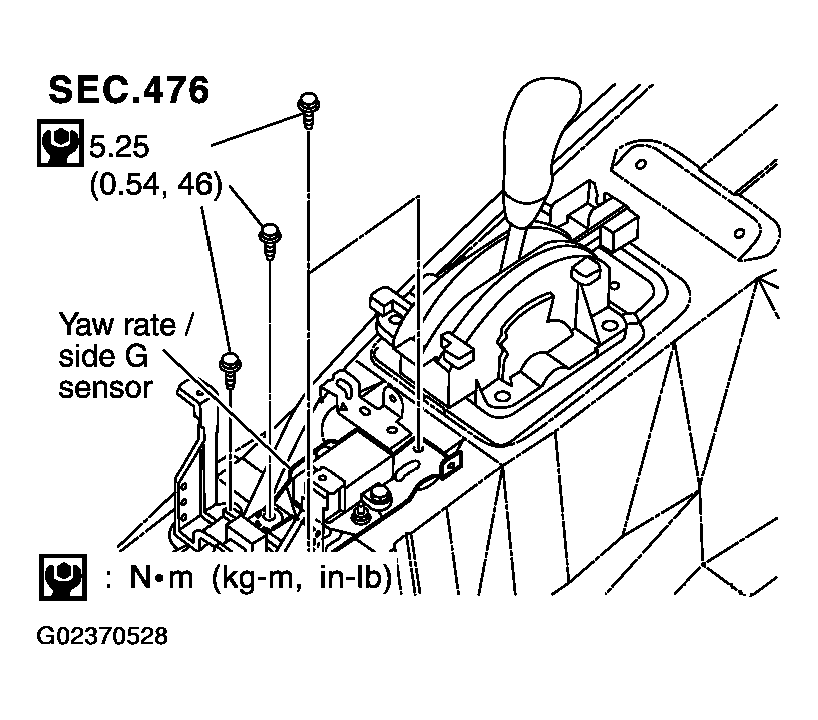

    Fig 1: Removing/Installing G Sensor With Torque Specifications
    G02370528Courtesy of NISSAN MOTOR CO., U.S.A.
