Check Fuel Level Sensor Unit

For removal, Refer to "FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY "
Check resistance between terminals 5 and 6.

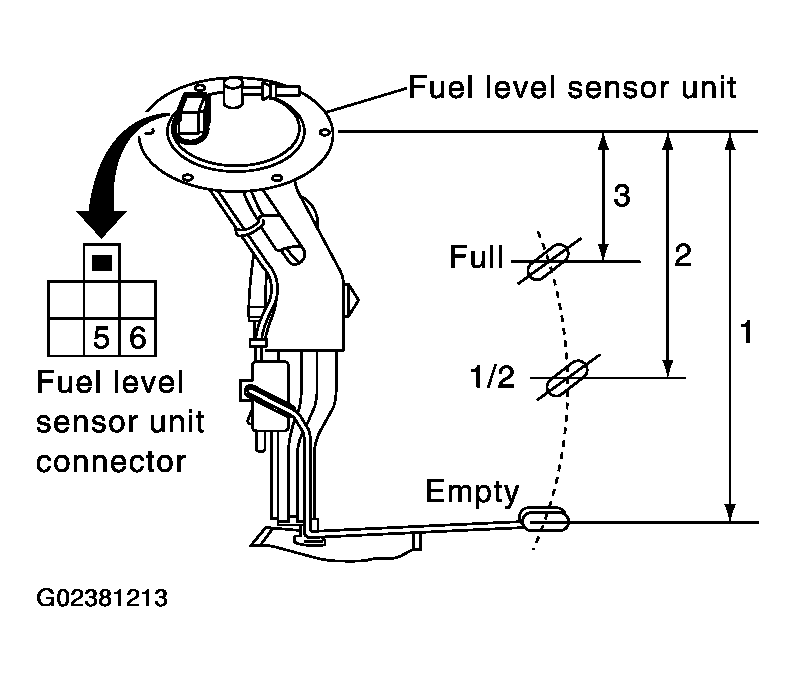

Fig 1: Identifying Fuel Level Sensor Unit
Courtesy of NISSAN MOTOR CO., U.S.A.

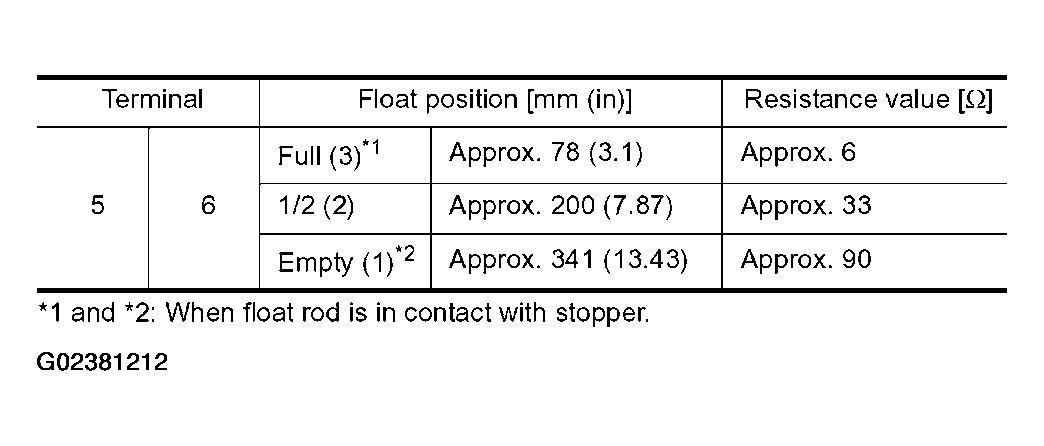

Fig 2: Terminal Continuity Description
Courtesy of NISSAN MOTOR CO., U.S.A.
