Rear View Camera Operation.: Notes

AV control unit (AV and NAVI control unit) switches the display to rear view camera image when input reverse signal by AV communication line.

Display shows image from rear view camera image and rear view camera guideline.

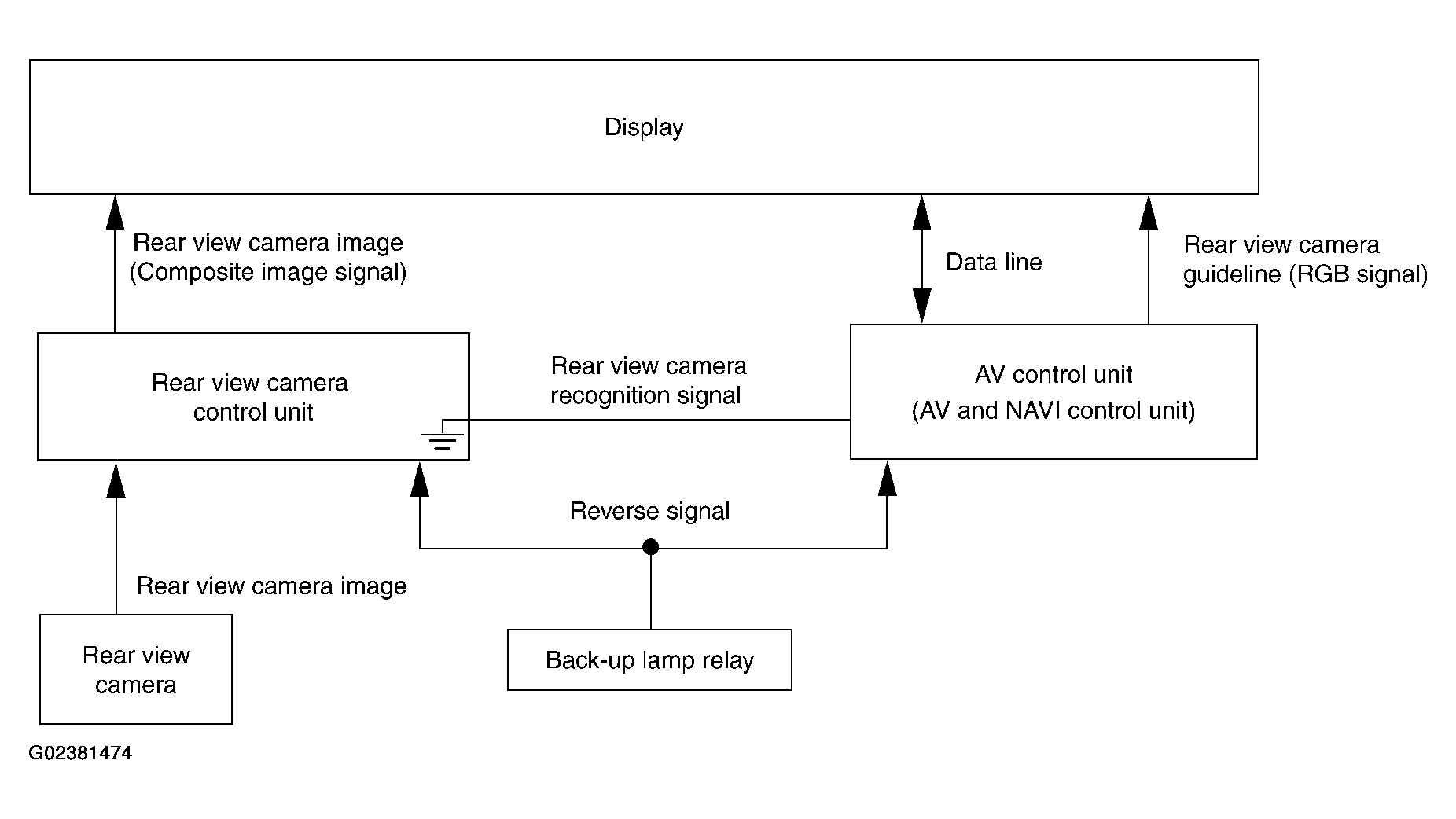

Fig 1: Rear View Camera Operation Chart
