Voice Activated Control System: Schematic

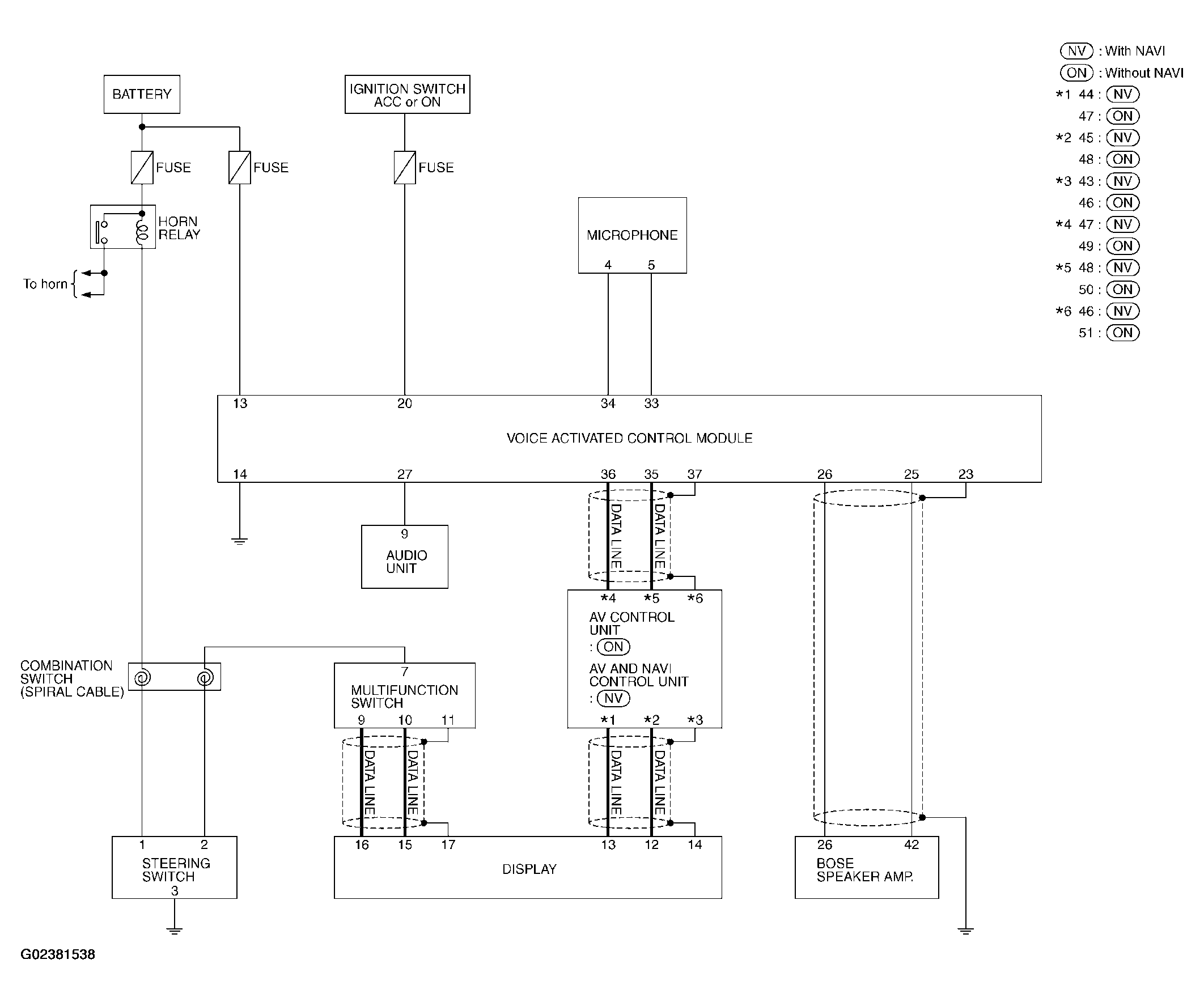

Fig 1: Voice Activated Control System Schematic Chart

G02381538

Courtesy of NISSAN MOTOR CO., U.S.A.
